型号Model

HM15045MPC

像机尺寸Image Size

1.1-inch

焦距Focal length

150mm

光圈范围F No.

F4.5-22

最短物距M.O.D(m)

3m-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Angle of View

1.1"Type

6.87°x5.49°x4.12°

1" Type

6.10°x4.88°x3.66°

2/3" Type

4.20°x3.36°x2.52°

1/3" Type

2.29°x1.83°x1.37°

畸变Distortion

1"Type

0.01%

法兰后焦距Flange BFL

17.53mm

光学总长Optical length

104.55mm

接口Mount

C-Mount

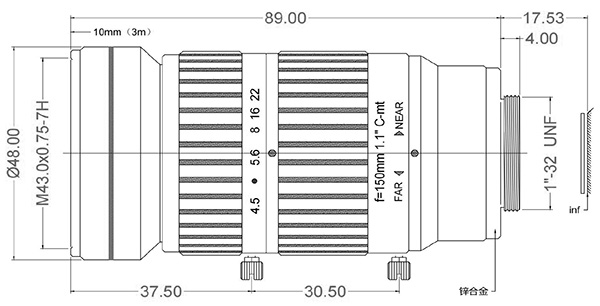

外形尺寸Dimension

Ф48x89mm

滤镜尺寸Filter Thread

M43*0.75

重量Weight

315.0g

产品构成Structure）

铝合金（阳极黑）+10G

备注Remark

16MP FA LENS
