型号Model

KM5014MP12C

像机尺寸Image Size

1.1-inch

焦距Focal length

50mm

光圈范围F No.

F1.4-C

最短物距M.O.D(m)

0.8

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

1.1" Type

20.5°×16.5°×11.8°

1" Type

18.2°×14.6°×10.9°

2/3"Type

12.7°×10.2°×7.6°

畸变Distortion

1.1" Type

-1.86%

光学后焦距BFL

19.6mm

机械后焦距MFL

13.526mm

法兰后焦距Flange BFL

17.526mm

接口Mount

C-Mount

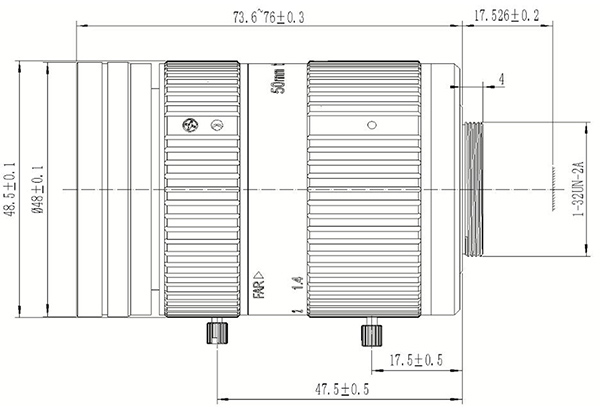

外形尺寸Dimension

Ф48.5x73.6mm

重量Weight

320.0g

工作温度Operating temperature

-30℃～+70℃

备注Remark

12 Megapixel ITS Lens
