型号Model

KM1620MP12

像机尺寸Image Size

4/3-inch

焦距Focal length

16mm

光圈范围F No.

F2.0-22

最短物距M.O.D(m)

0.1-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

4/3"  Type

73.1°×61.2°×47.3°

1"Type

54.2°×44.3°×34.3°

1/2"Type

28.3°×22.7°×17.1°

畸变Distortion

-1.91%@y=11.5㎜;-0.55%@y=4㎜

法兰后焦距(Flange BFL)

17.526mm

后焦距Back focal length

21mm

接口Mount

C-Mount

近摄视野4/3"FOV

145.5mm×107.3mm(WD=100mm)

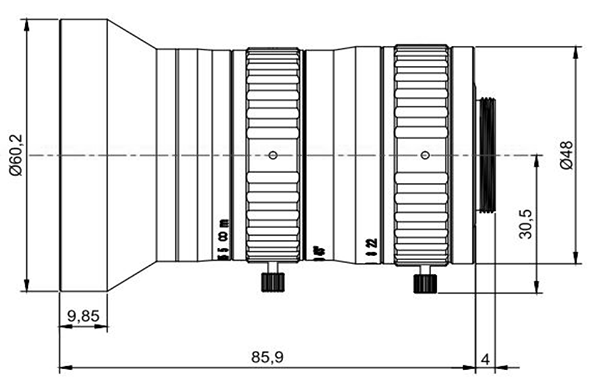

外形尺寸Dimension

Ф60.2x85.9mm

重量Weight

355.0g

滤镜尺寸Filter Thread

M58x 0.75mm

工作温度Working Temperature

-20ºC ～ +60ºC
