FM-MP10 Series Lenses Product screening

FM-MP10 Series Lenses: 2/3″ C-Mount F2.8 10MP; FL8,12, 16, 25, 35, 50,75mm Lens Series; High resolution ,high clarity; Low distortion,High measurement accuracy; compact appearance for device integration; Lower price,higher performance

Image Size

Focal length

Mount

Resolution

Product search

FM-MP10 Series Lenses

Picture	Model	Image Size	Focal length	Mount	Resolution	F No.	Distortion

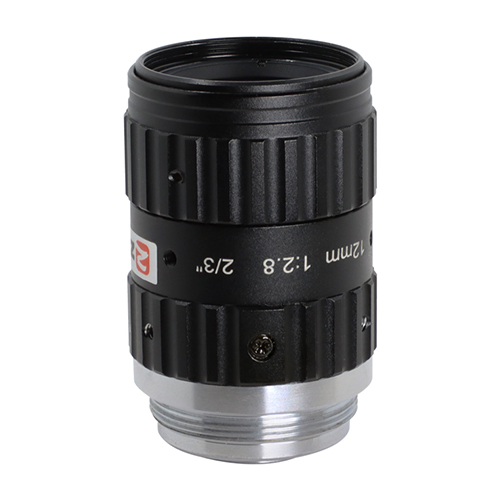

	FM1228MP10	2/3''	12mm	C-Mount	10MP(2/3'')	F2.8	-0.2%
	FM1628MP10	2/3''	16mm	C-Mount	10MP(2/3'')	F2.8	-0.2%

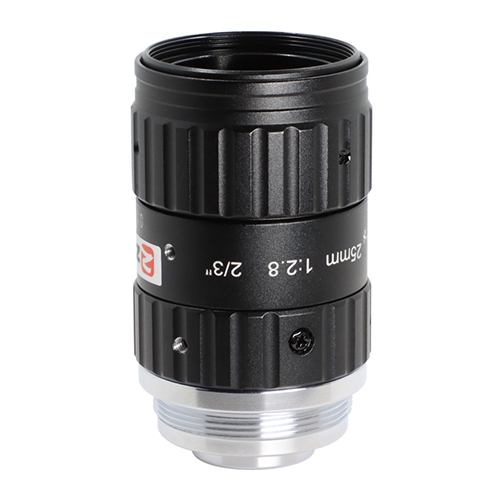

	FM2528MP10	2/3''	25mm	C-Mount	10MP(2/3'')	F2.8	-0.3%

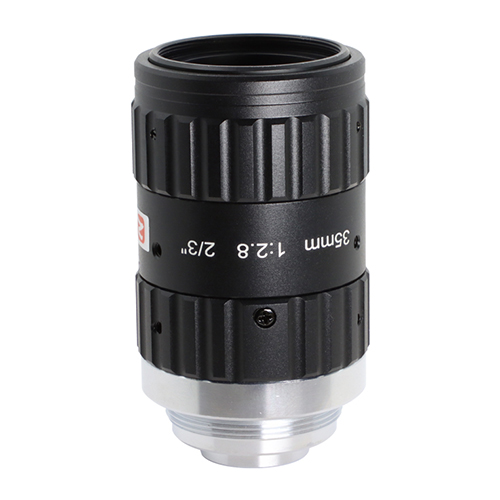

	FM3528MP10	2/3''	35mm	C-Mount	10MP(2/3'')	F2.8	-0.06%
	FM5028MP10	2/3''	50mm	C-Mount	10MP(2/3'')	F2.8	-0.02%

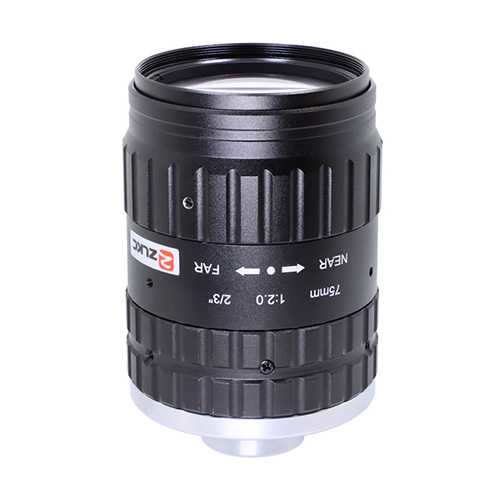

	FM7520MP10	2/3''	75mm	C-Mount	10MP(2/3'')	F2.0	-0.02%

first prev 1 next last

Picture	Model	Image Size	Focal length
	FM1228MP10	2/3''	12mm
	FM1628MP10	2/3''	16mm
	FM2528MP10	2/3''	25mm
	FM3528MP10	2/3''	35mm
	FM5028MP10	2/3''	50mm
	FM7520MP10	2/3''	75mm

first prev 1 next last
