These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.| Picture | Model | Image Size | Focal length | Mount | F No. | Distortion | Magnification |
|---|---|---|---|---|---|---|---|
 |

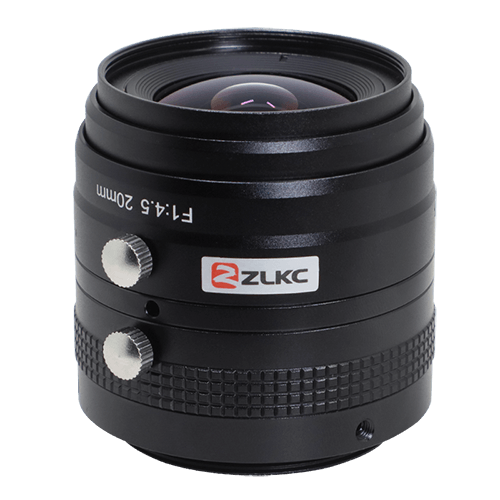

TM2004K03 | Φ30mm | 20mm | M42*P1 | F4.5 | <0.2% | 0.0358X |
|

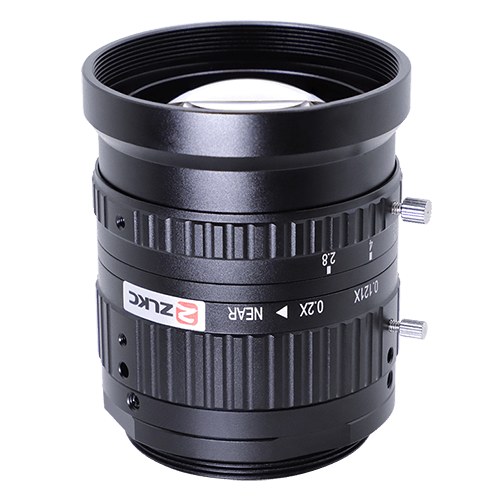

TM2504K03 | Φ30mm | 25mm | M42*P1 | F4.0 | <0.2% | 0.03X |
|

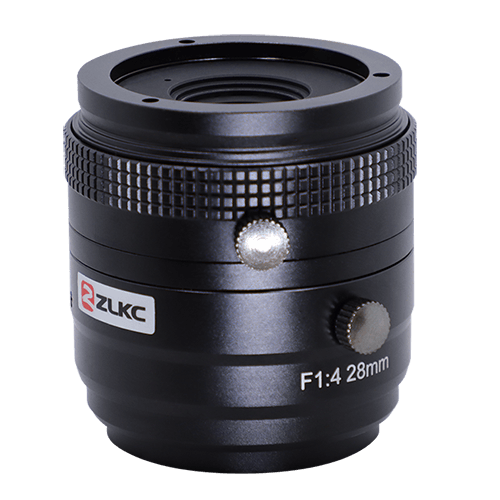

TM2904K10 | Φ30mm | 29mm | V-Mount | F4.0 | <0.1% | 0.1X |
|
TM3504K08 | Φ30mm | 35mm | V-Mount | F4.5 | <0.01% | 0.08X |
|

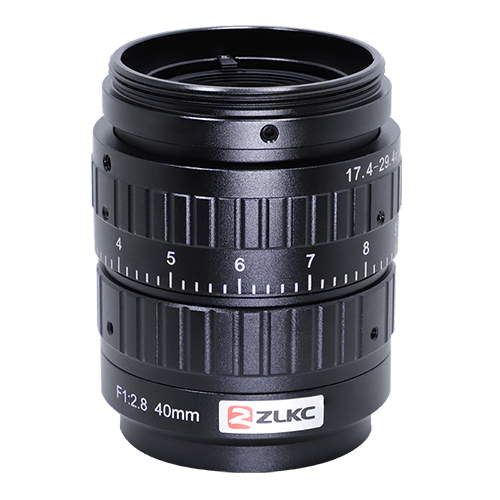

TM4004K10 | Φ43mm | 40mm | V-Mount | F2.8 | <0.5% | 0.1X |
|
TM4008K20 | Φ60mm | 40mm | M72*P0.75 | F5.6 | <0.1% | 0.02X |
