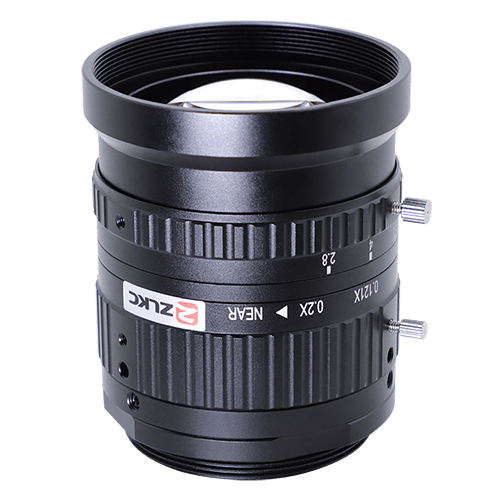

Line Scan Lens Φ30 Image Circle FL25mm TM2504K03 0.03Ｘ M42*P1

Line Scan Lens Φ30 Image Circle FL25mm TM2504K03 0.03Ｘ M42*P1: 0.03Ｘ M42*P1 f=25mm; Maximum image circle Φ30mm; High resolution and high measurement accuracy; Small Magnification and low distortion; applicable to 4K/8K 7μm line scan cameras; Option: Interface from V-Mount to M42,M58,F-mount

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ Product Features
◆ Brand：ZLKC
◆ Image Circle：Φ30 M42*P1
◆ Focal length：f=25mm
◆ F No.：F4.0

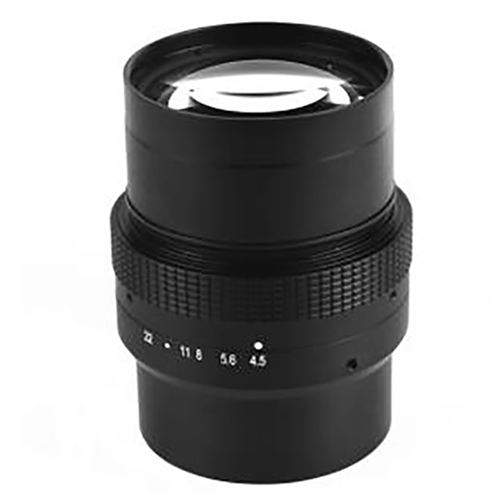

◆ Features：FL25mm M42*P1 Mount Φ30 Format 0.03X Marco Line Scan Lens

※ Model
TM2504K03

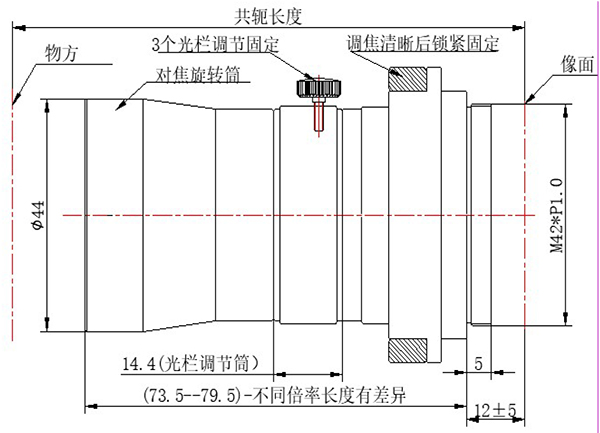

※ Dimension

※ Industries Application
These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

FL25mm Φ30 Image Circle 0.03X Line Scan Lens
Model			TM2504K03
Max Image Circle			Φ30
Focal length			25mm
F No.			F4.0
Distortion			<0.2%
Operation		Iris	Manual
		Focus	Manual
Flange BFL			12mm
Mount			M42*P1
Dimension			Φ44×73.5mm
Filter			-
Working Temperature			-20ºC ～ +60ºC
Working Distance(mm)	Optical Magnification	Conjuguate Distance(mm)	（Φ28）Field of View(mm)	（Φ30）Field of View(mm)
1740±5	0.015X	1826.4±9	1867	2000
860±5	0.03X	946.8±9	933	1000
520±5	0.05X	607.3±9	560	600
