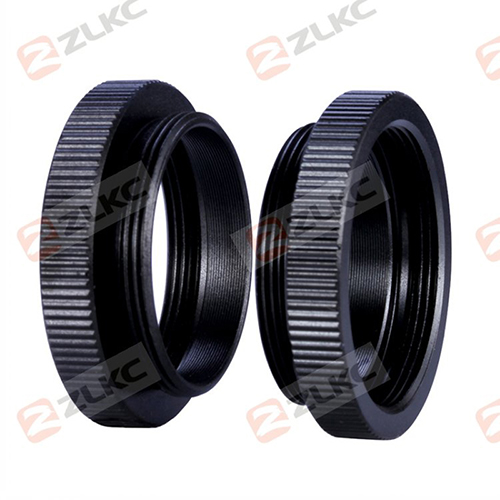

Extension Tubes VM5C 5mm C-CS Mount Lens Adapter adapter ring: 规格：C/CS型 5mm; 材质：优质铝合金; 颜色：亚光黑色; 外径：31mm; 特点：高精度,小于0.01; 适用工业相机、C转CS接口等

View phone

Inquiry now

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ 规格特性
品牌：ZLKC(中联科创)
规格接口：C/CS型
目距：5mm
外部口径：31mm
特点：高精度,小于0.01工差,转接后保持不松动,不影响成像。

※ 订货型号
VM5C 转接环

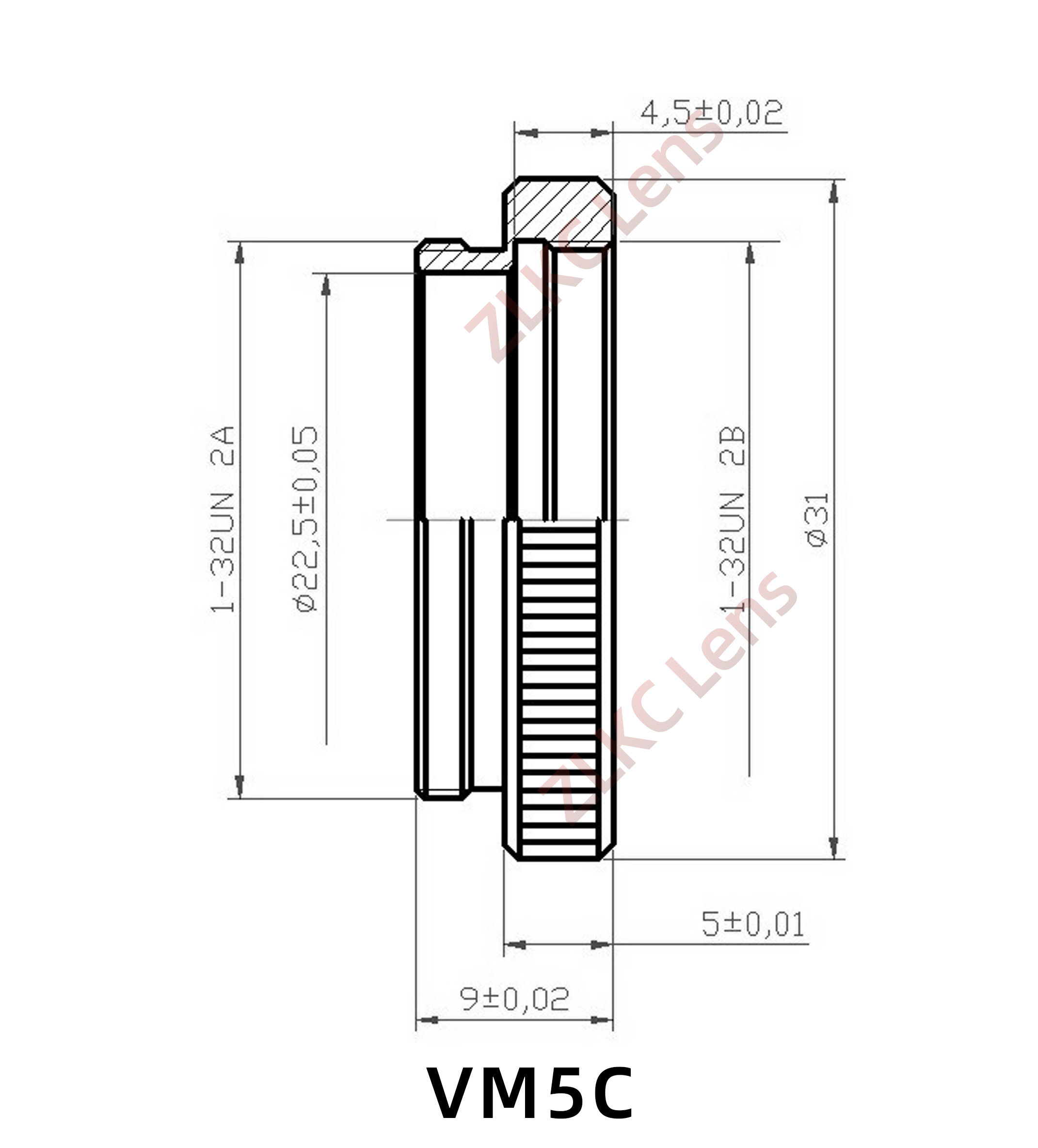

※ 外形尺寸

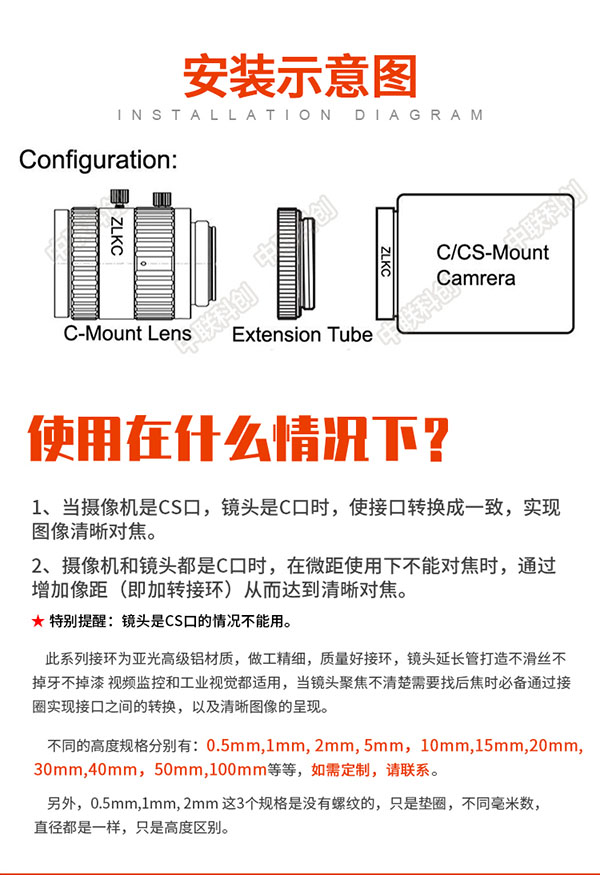

※ 应用场景
镜头接圈是一种用于增加镜头与图像传感器之间距离的接圈,当聚焦不清时,通过在镜头和相机之间单独或者组合使用这些接圈，当连接上接环时，可以观察到视场、工作距离和放大倍数产生变化,以帮助镜头可以呈现最清晰的图像。

※ 系列推荐
C式安装座从基准面到焦点的距离为17.562毫米，CS式距焦点距离为12.5毫米。如果要将一个Ｃ安装座镜头安装到一个CS安装座摄像机上时，则需要使用镜头转换环。这种转换环就叫5mm C-CS接环。同系列规格可选0.1mm 1mm 2mm 5mm 10mm 15mm 20mm 30mm 40mm 50mm 100mm 。

型号Model	VM0.5C	VM1C	VM2C	VM5C	VM10C	VM15C	VM20C	VM30C	VM40C	VM50C
目距length	0.5mm	1mm	2mm	5mm	10mm	15mm	20mm	30mm	40mm	50mm

VM-C adapter ring Specifications
