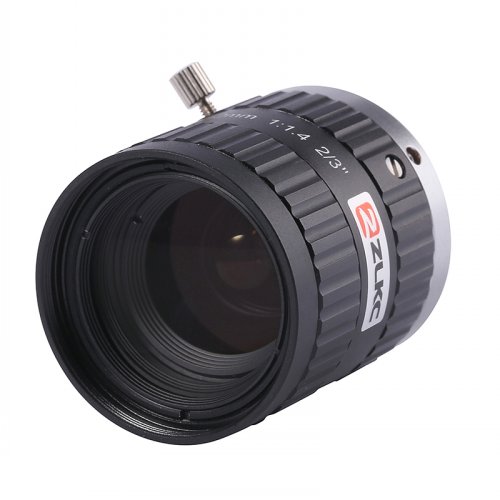

5MP 12mm Low distortion FA Lens C Mount

Working Distance

Magnification

2/3"Field of View(mm)

Model

HM1214MP5

mm

-

H

V

Image Size

2/3-inch

900

0.014X

628.6

471.4

Focal length

12mm

850

0.015X

586.7

440.0

F No.

F1.4-16

800

0.016X

550.0

412.5

M.O.D(m)

0.1-Inf.

750

0.017X

517.6

388.2

Operation

Iris

Manual

700

0.018X

488.9

366.7

Focus

Manual

650

0.019X

463.2

347.4

Angle of View

(D×H×V)

2/3"

49.3°×39.5°×30.5°

600

0.021X

419.0

314.3

1/2"

36.8°×29.5°×22.8°

550

0.022X

400.0

300.0

Distortion

<0.2%

500

0.025X

352.0

264.0

BFL

12.42mm

450

0.027X

325.9

244.4

Mount

C-Mount

400

0.030X

293.3

220.0

Object Dimension (mm)

220mm×165mm(WD=300mm)

350

0.035X

251.4

188.6

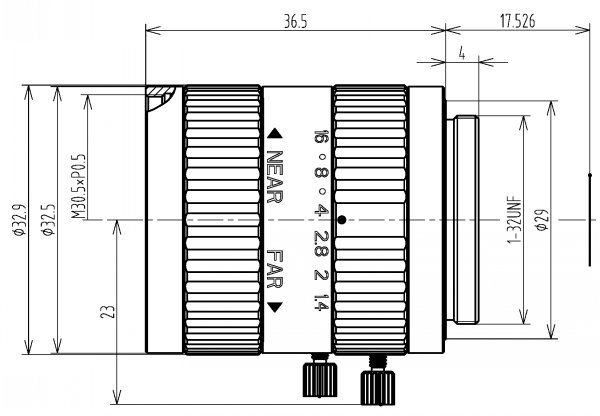

Dimension

Φ32.5×36.5mm

300

0.040X

220.0

165.0

Weight

63g

250

0.048X

183.3

137.5

Horizontal Resolution

5.0MP

200

0.059X

149.2

111.9

Filter Thread

M30.5x 0.5

150

0.077X

114.3

85.7

Working Temperature

-20ºC ～ +60ºC

100

0.097X

88.4

66.3
