5MP 35mm F1.8 C Mount Lens

Working Distance

Optical Magnification

2/3"Field of View(mm)

Model

FM3518MP5

mm

-

H

V

Image Size

2/3-inch

2000

0.018X

496.7

372.5

Focal length

35mm

1000

0.035X

251.4

188.6

F No.

F1.8-16

900

0.039X

226.3

169.7

M.O.D(m)

0.2-Inf.

850

0.041X

213.7

160.3

Operation

Iris

Manual

800

0.044X

201.1

150.9

Focus

Manual

750

0.047X

188.6

141.4

Angle of View

(D×H×V)

2/3"

17.9°×14.3°×10.8°

700

0.050X

176.0

132.0

1/1.8"

14.4°×11.6°×8.7°

650

0.054X

163.4

122.6

1/2"

13°×10.4°×7.8°

600

0.058X

150.9

113.1

1/2.9"

10.1°×8.8°×4.9°

550

0.064X

138.3

103.7

TV Distortion

-0.01%

500

0.070X

125.7

94.3

BFL

15.21mm

450

0.078X

113.1

84.9

Flange FL

17.526mm

400

0.088X

100.6

75.4

Mount

C-Mount

350

0.100X

88.0

66.0

2/3"FOV

75.4mm×56.6mm(WD=300mm)

300

0.117X

75.4

56.6

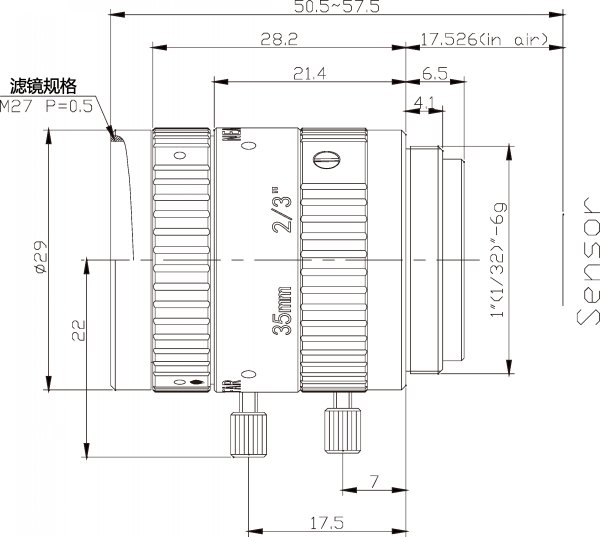

Dimension

Φ29×33mm

280

0.125X

70.4

52.8

Weight

71.0g

250

0.140X

62.9

47.1

分辨率 Resolution

5.0MP

200

0.175X

50.3

37.7

滤镜尺寸Filter

M27 P=0.5mm

150

0.233X

37.7

28.3

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.350X

25.1

18.9
