    ITS Lens KM1214MP8 12mm 8Megapixel Manual Iris Lens, 1-inch F1.4 Fixed focus Lens C Mount CCTV Lens
    C-Mount f=12mm F1.4
    Maximum image circle of 1" (φ16mm)
    High resolution ,excellent image uniformity
    high contrast,high peripheral brightness ratio
    Low distortion,compact appearance
    Locking set screws for focus and Iris
    Product Features
    Brand:ZLKC
    ◆ Image Size:1″ C-mount
    ◆ Focal length:f=12mm
    ◆ F No.:F1.4-C
    ◆ Features:1-inch ITS Lens 12mm 8MP Manual Iris Lens,  F1.4 Fixed focus Lens C Mount HD Lens

    Model
    KM1214MP8

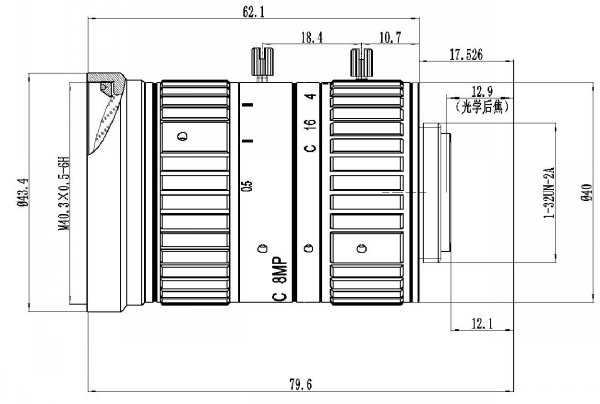

    Dimension


    Industries Application
    These are used in video surveillance industry and ITS. These cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on

    Model

    KM1214MP8

    Image Size

    1-inch

    Focal length

    12mm

    F No.

    F1.4-C

    M.O.D(m)

    0.3

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    67.5°×60.4°×33.3°


    2/3" Type

    48.3°×39.5°×30.6°

    Distortion

    1" Type

    -2.1%

    Back focal length

    12.9mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф43.4x62.1mm

    Weight

    187.0g

    Horizontal Resolution

    160lp/mm

    Remark

    8MP ITS lens

    KM1214MP8 Specifications
