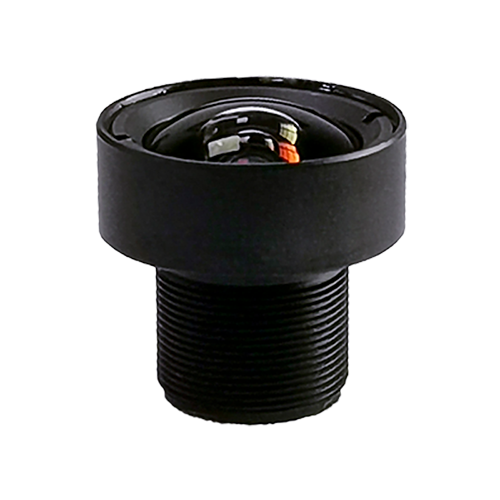

5MP 3.37mm Low distortion S-Mount |
- |
- |
- |
|||
Working Distance |
Optical Magnification |
1/1.8"Field of View(mm) |
||||
Model |
MTV035MP5C |
mm |
- |
H |
V |
|
Image Size |
1/2-inch |
850 |
0.004X |
1600 |
1200 |
|
Focal length |
3.37mm |
800 |
0.0042X |
1524 |
1143 |
|
F No. |
750 |
0.0045X |
1422 |
1007 |
||
M.O.D(m) |
0.1-Inf. |
700 |
0.0048X |
1333 |
1000 |
|
Operation |
Iris |
Fix |
650 |
0.0052X |
1231 |
923.1 |
Focus |
Manual |
600 |
0.0056X |
1143 |
857.1 |
|
Angle of View (D×H×V) |
1/2" |
101°×87°×70.6° |
550 |
0.0061X |
1049 |
786.9 |
1/3" |
83°×72°×51° |
500 |
0.0067X |
955.2 |
716.4 |
|
Distortion |
<0.5% |
450 |
0.007X |
914.3 |
685.7 |
|
BFL |
5.63mm |
400 |
0.008X |
800 |
600 |
|
Mount |
M12XP0.5 |
350 |
0.01X |
640 |
480 |
|
Object Dimension (mm) |
361×270.4 (WD=300mm) |
300 |
0.011X |
581.8 |
436.4 |
|
Resolusion |
5MP |
250 |
0.013X |
492.3 |
369.2 |
|

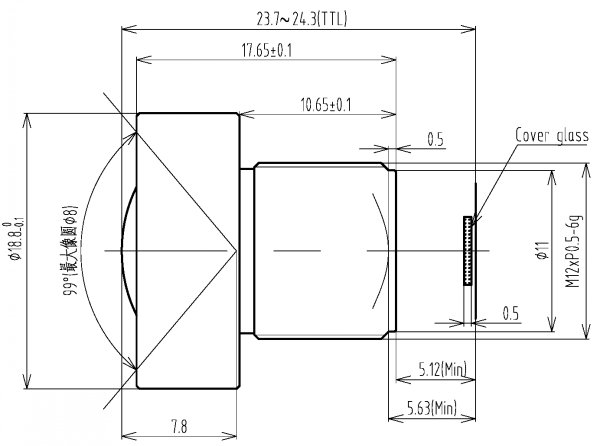

Dimension |
Φ18.8×17.65mm |
200 |
0.016X |
400 |
300 |
|
Weight |
6.8g |
150 |
0.022X |
290.9 |
218.2 |
|
Working Temperature |
-20ºC ~ +60ºC |
100 |
0.032X |
200 |
150 |
