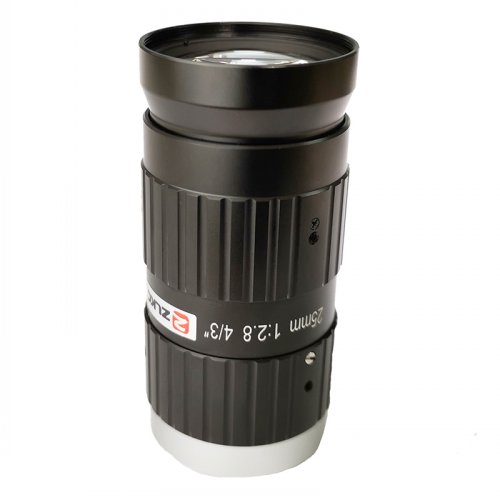

4/3" 20MP 25mm FA Lens C Mount |
Working Distance |
Optical Magnification |
4/3"Field of View(mm) |
|||
Model |
KM2528MP20 |
mm |
X |
H |
V |
|
Image Size |
4/3-inch |
5000 |
0.005X |
3441.1 |
2580.8 |
|
Focal length |
25mm |
2000 |
0.013X |
1384.5 |
1038.4 |
|
F No. |
F2.8-22 |
1000 |
0.025X |
898.8 |
524.1 |
|
M.O.D(m) |
0.1-Inf. |
900 |
0.028X |
630.2 |
427.7 |
|
Operation |
Iris |
Manual |
800 |
0.031X |
561.6 |
421.2 |
Focus |
Manual |
700 |
0.036X |
493.0 |
369.8 |
|
Angle of View (D×H×V) |
4/3" |
45.9°×37.5°×28.5° |
600 |
0.042X |
424.4 |
318.3 |
1" |
34.2°×27.6°×20.9° |
550 |
0.045X |
390.0 |
292.5 |
|
2/3" |
23.9°×19.2°×14.5° |
500 |
0.050X |
355.7 |
266.8 |
|
Distortion |
<0.03% |
450 |
0.055X |
321.4 |
241.0 |
|
BFL |
29.6mm |
400 |
0.061X |
287.0 |
215.3 |
|
Mount |
C-Mount |
350 |
0.070X |
252.6 |
189.5 |
|
Object Dimension |
218.2mm×163.7mm(WD=300mm) |
300 |
0.081X |
218.2 |
163.7 |
|

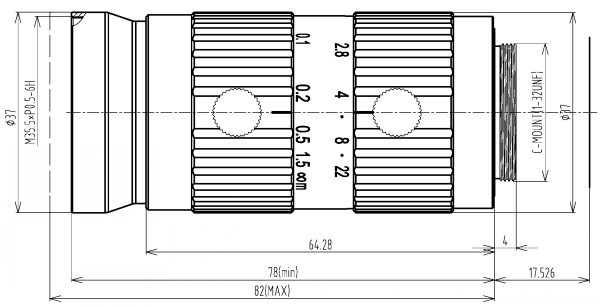

Dimension |
Φ37×78mm |
250 |
0.096X |
183.8 |
137.8 |
|
Weight |
182.0g |
200 |
0.118X |
149.2 |
111.9 |
|
Filter Thread |
150 |
0.154X |
114.6 |
86.0 |
||
Working Temperature |
-20ºC ~ +60ºC |
100 |
0.221X |
79.8 |
59.8 |
