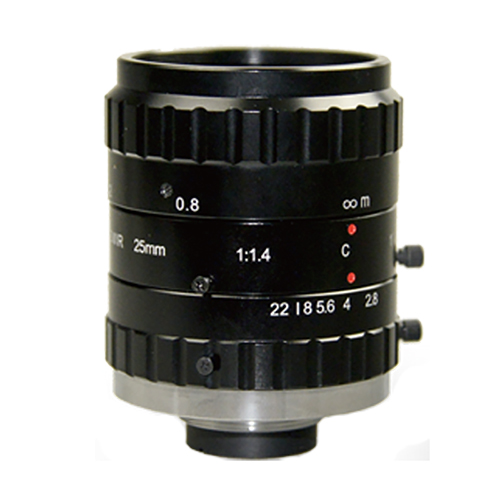

    SWIR lens 2/3-inch Shortwave Infrared Lenses SW2514MPIR 25mm C-Mount
    2/3″ C-Mount f=25mm
    High resolution,wavelength 750-1700nm
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：2/3" C-Mount
    ◆ Focal length：f=25mm
    ◆ F No.：F1.4
    ◆ Features：Focal length 25mm 2/3″C-Mount SWIR Shortwave Infrared Lenses

    ※ Model
    SW2514MPIR

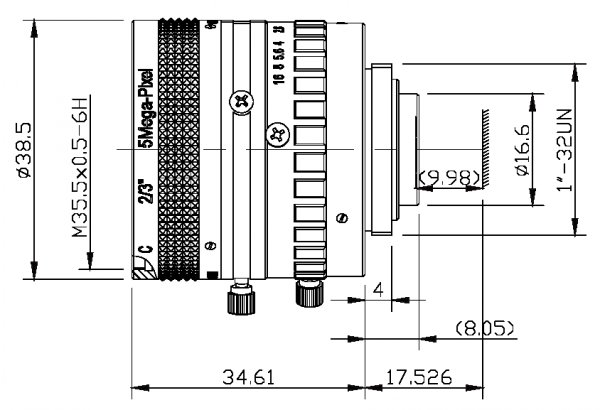

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    Model

    SW2514MPIR

    Image Size

    2/3-inch

    Focal length

    25mm

    F No.

    F1.4-16

    M.O.D(m)

    0.2-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3"Type

    23.6°×19.1°×14.4°

    1/2"Type

    17.6°×14.1°×10.6°

    1/3"Type

    13.2°×10.6°×8.1°

    Distortion

    2/3"Type

    -0.3%

    Back focal length

    9.98mm

    Mount

    C-Mount

    Object Dimension (mm) WD=250mm

    94.1x70.4mm

    Dimension

    Ф38.5x34.61mm

    Weight

    113.0g

    Horizontal Resolution

    60lp/mm

    optical wavelength

    750~1700mm

    Filter Thread

    M35.5x 0.5

    Working Temperature

    -20ºC ～ +60ºC

    SW2514MPIR Specifications
