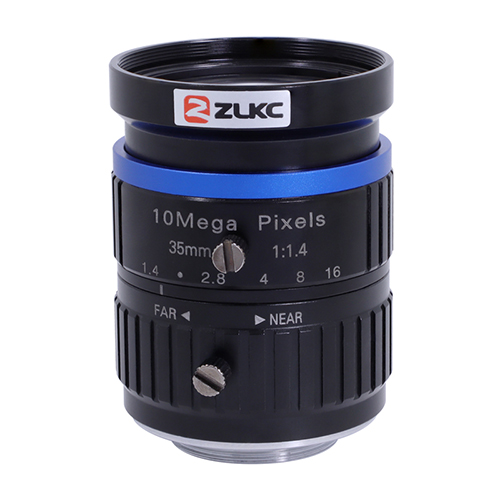

    1-inch FA Lens HM3514MPC 35mm 10MP C-Mount
    1″ C Mount f=35mm F1.4
    High resolution ,excellent image uniformity
    high contrast,Can suppress stray light
    Low distortion,High measurement accuracy
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=35mm
    ◆ F No.：F1.4
    ◆ Features：1-inch 35mm 10MP Manual Iris Lens,  F1.4 Fixed focus Lens C Mount HD Lens

    ※ Model
    HM3514MPC

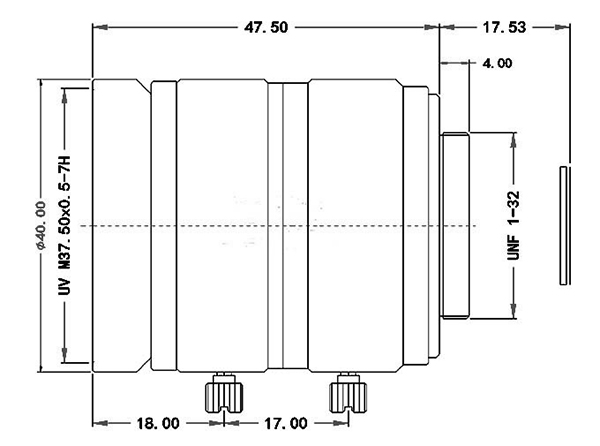

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HM3514MPC

    Image Size

    1-inch

    Focal length

    35mm

    F No.

    F1.4-C

    M.O.D(m)

    0.3m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    21.0°x15.9°

    2/3"Type

    14.5°x10.9°

    1/1.8"Type

    11.8°x8.8°

    Mount

    C-Mount

    TV Distortion

    -0.25%

    Dimension

    Ф40x47.5mm

    Weight

    148.0g

    Filter

    M37.5 P=0.5mm

    Remark

    10MP HD LENS

    HM3514MPC Specifications
