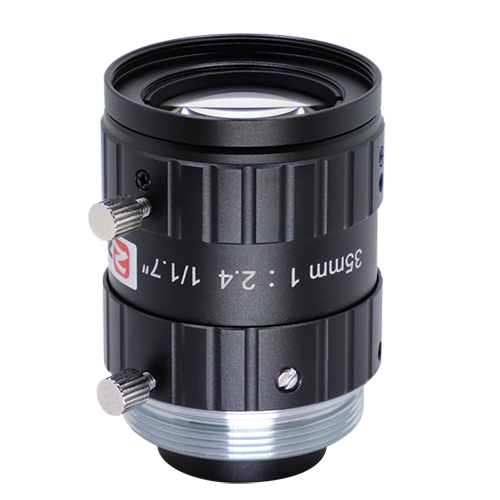

12MP 35mm FA lens C Mount |
Working Distance |
Optical Magnification |
1/1.7"Field of View(7.4*5.6mm) |
|||
Model |
VM3524MP12 |
mm |
X |
H |
V |
|
Image Size |
1/1.7-inch |
5000 |
0.010X |
1090.0 |
824.8 |
|
Focal length |
35mm |
2000 |
0.017X |
436.0 |
329.9 |
|
F No. |
F2.4-16 |
1000 |
0.034X |
218.9 |
166.3 |
|
M.O.D(m) |
0.15-Inf. |
900 |
0.038X |
195.8 |
148.7 |
|
Operation |
Iris |
Manual |
800 |
0.043X |
173.7 |
131.9 |
Focus |
Manual |
700 |
0.049X |
151.0 |
114.7 |
|
Horizontal Angle of View (D×H×V) |
1/1.7" |
16.1°×12.86°×9.78° |
600 |
0.057X |
129.8 |
98.6 |
1/2" |
15.4°×12.86°×8.54° |
550 |
0.063X |
117.5 |
89.2 |
|
1/3" |
13.9°×11.3°×8.4° |
500 |
0.070X |
105.7 |
80.3 |
|
Distortion |
<0.03% |
450 |
0.078X |
94.9 |
72.1 |
|
BFL |
9.6mm |
400 |
0.089X |
83.1 |
63.1 |
|
Flange BFL |
17.526mm |
350 |
0.102X |
72.5 |
55.1 |
|
Mount |
C-Mount |
300 |
0.121X |
61.2 |
46.4 |
|
Dimension |
Φ29×32.32mm |
250 |
0.149X |
49.7 |
37.7 |
|
Weight |
59.5g |
200 |
0.192X |
38.5 |
29.3 |
|
Filter Thread |
M27xP0.5 |
150 |
0.267X |
27.7 |
21.0 |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
