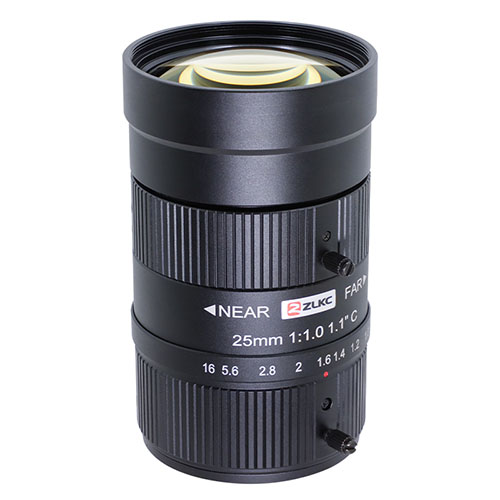

    12MP F1.0 C Mount Lens KM2510MP12S 25mm Manual Iris Lens, 1.1-inch Fixed focus Traffic camera lens
    C-Mount f=25mm F1.0
    Maximum image circle of 1.1"
    High quality imaging with 12 MP resolution
    high contrast,delivers clean and sharp images
    Low distortion,Excellent low-light performance
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1.1″ C-mount
    ◆ Focal length：f=25mm
    ◆ F No.：F1.0
    ◆ Features：1.1-inch ITS Lens 25mm 12MP Manual Iris Lens,  F1.0 C Mount Traffic camera lens

    ※ Model
    KM2510MP12S

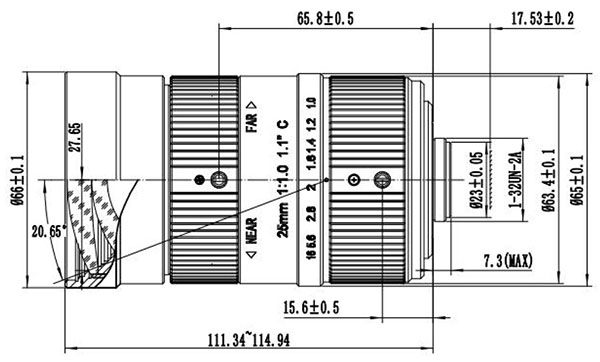

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and ITS. Violation behaviors detection: driving on lane line, Illegal lane change, wrong-way driving detection, seatbelt and phone call detectionThese cover applications from ITS and road monitoring and bank to security bayonet monitoring, Electronic police snapshot and traffic cameras and so on

    Model

    KM2510MP12S

    Image Size

    1.1-inch(φ17.8mm）

    Focal length

    25mm

    F No.

    F1.0

    M.O.D(m)

    0.3

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1.1" Type

    41.1°×33.3°×24.0°

    1" Type

    36.8°×29.4°×22.0°

    Distortion

    1.1" Type

    -3.1%

    CRA

    ≤8°

    BFL

    12.135mm

    MFL

    11.44mm

    Flange BFL

    17.526mm

    Mount

    C-Mount

    Dimension

    Ф66x114.94mm

    Weight

    820.0g

    工Operating temperature

    -30℃～+70℃

    Remark

    12 Megapixel ITS Lens

    KM2510MP12S Specifications
