500万像素25mm低畸变FA镜头C Mount

物距Working Distance

倍率 Optical Magnification

视野 2/3"Field of View(mm)

型号Model

HM2514MP5

mm

-

H

V

像机尺寸Image Size

2/3-inch

900

0.028X

317.5

237.7

焦距Focal length

25mm

850

0.029X

299.9

224.5

光圈范围F No.

F1.4-16

800

0.031X

282.3

211.3

最短物距M.O.D(m)

0.1-Inf.

750

0.033X

264.6

198.1

控制方式Operation

Iris

Manual手动调整

700

0.036X

247.0

184.9

Focus

Manual手动调整

650

0.039X

229.4

171.6

视场角

Angle of View

(D×H×V)

2/3"

24.8°×20.0°×15.0°

600

0.042X

211.8

158.4

1/2"

18.1°×14.5°×11.1°

550

0.046X

194.1

145.2

畸变Distortion

<0.05%

500

0.050X

176.5

132.0

光学后焦BFL

12.25mm

450

0.056X

158.9

118.8

接口Mount

C-Mount

400

0.063X

141.2

105.6

近摄视野Object Dimension

108.0mm×82.0mm (WD=300mm)

350

0.072X

123.6

92.4

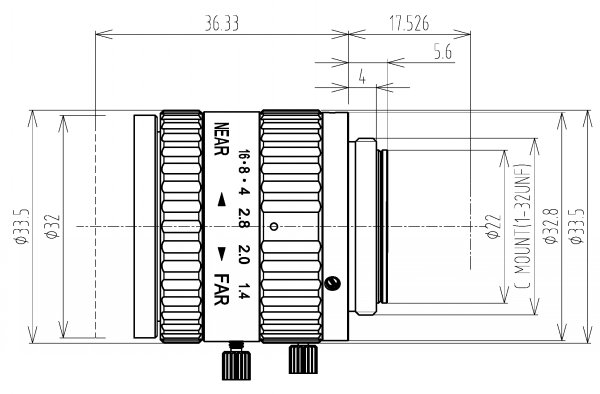

外形尺寸Dimension

Φ32.5×36.5mm

300

0.084X

108.0

82.0

重量Weight

67.0g

250

0.100X

88.3

66.0

分辨率Horizontal Resolution

5.0MP

200

0.126X

70.7

52.7

滤镜尺寸Filter Thread

M30.5x 0.5

150

0.168X

53.0

39.5

工作温度Working Temperature

-20ºC ～ +60ºC

100

0.253X

35.3

26.3
