1/1.7" C-mount FA Lens Product screening

1/1.7" C-mount FA Lens: 1/1.7″C-Mount 50mm 12MP; Can suppress stray light; high contrast,Low distortion; High resolution,wavelength 420-1000nm; compact appearance for device integration

Image Size

Focal length

Mount

Resolution

Product search

1/1.7" C-mount FA Lens

Picture	Model	Image Size	Focal length	Mount	Resolution	F No.	Distortion
	VM0624MP12	1/1.7''	6mm	C-Mount	12MP(1'' 1/1.7'')	F2.4

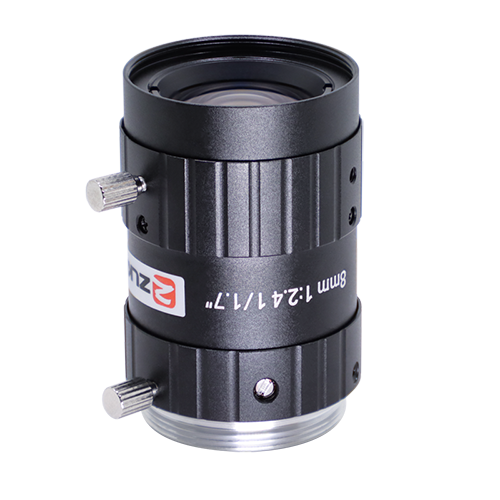

	VM0824MP12	1/1.7''	8mm	C-Mount	12MP(1'' 1/1.7'')	F2.4	<0.1%

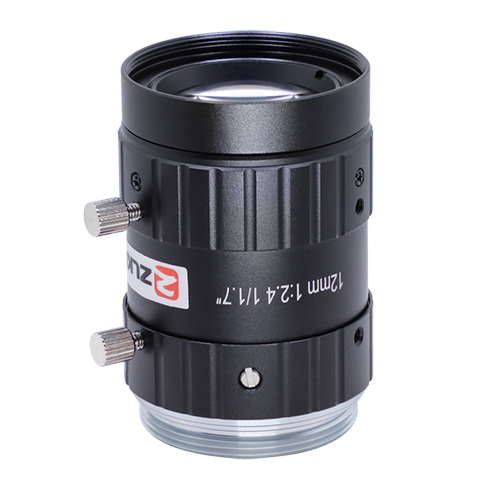

	VM1224MP12	1/1.7''	12mm	C-Mount	12MP(1'' 1/1.7'')	F2.4	<0.05%

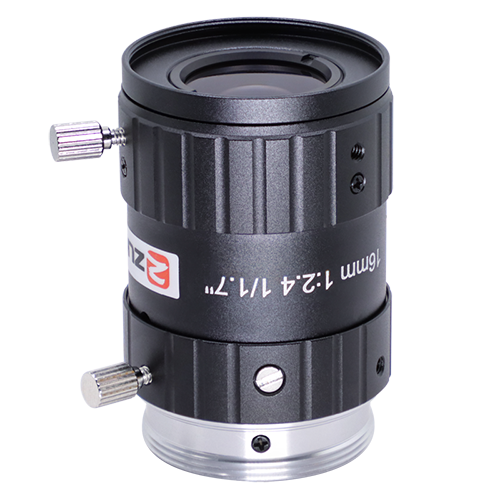

	VM1624MP12	1/1.7''	16mm	C-Mount	12MP(1'' 1/1.7'')	F2.4	<0.1%

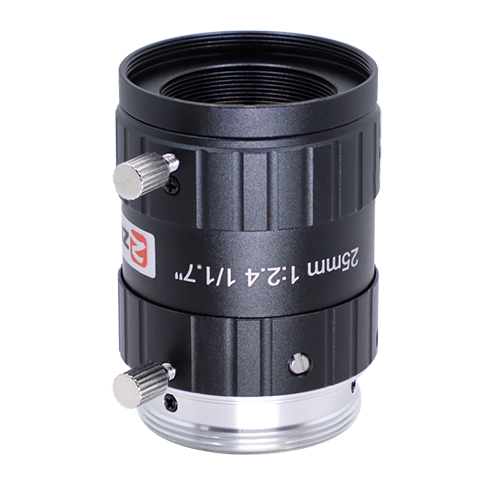

	VM2524MP12	1/1.7''	25mm	C-Mount	12MP(1'' 1/1.7'')	F2.4	<0.1%
	VM3524MP12	1/1.7''	35mm	C-Mount	12MP(1'' 1/1.7'')	F2.4	<0.03%

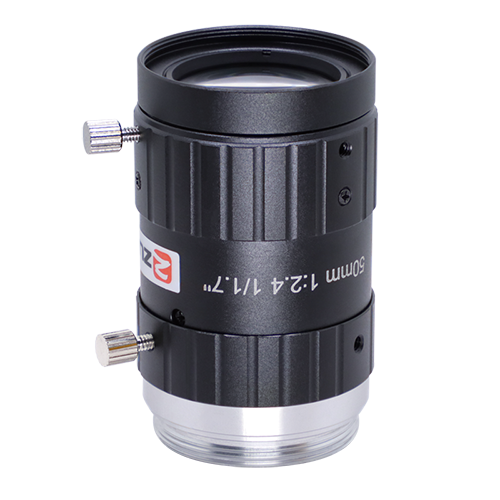

	VM5024MP12	1/1.7''	50mm	C-Mount	12MP(1'' 1/1.7'')	F2.4	<0.03%

first prev 1 next last

Picture	Model	Image Size	Focal length
	VM0624MP12	1/1.7''	6mm
	VM0824MP12	1/1.7''	8mm
	VM1224MP12	1/1.7''	12mm
	VM1624MP12	1/1.7''	16mm
	VM2524MP12	1/1.7''	25mm
	VM3524MP12	1/1.7''	35mm
	VM5024MP12	1/1.7''	50mm

first prev 1 next last
