5MP 12mm FA Lens C Mount

Working Distance

Optical Magnification

1/1.8"Field of View(mm)

Model

VM1220MP5

mm

-

H

V

Image Size

1/1.8-inch

900

0.013X

538.7

404

Focal length

12mm

850

0.014X

509

381.7

F No.

F2.0-C

800

0.015X

479.3

359.5

M.O.D(m)

0.1-Inf.

750

0.016X

449.6

337.2

Operation

Iris

Manual

700

0.017X

419.9

314.9

Focus

Manual

650

0.018X

390.3

292.7

Horizontal

Angle of View

(D×H×V)

1/1.8"

40.7°×33°×24.3°

600

0.020X

360.6

270.4

1/2.5"

33.3°×27.2°×20.7°

550

0.022X

330.9

248.2

1/3"

28.1°×22.9°×17.6°

500

0.024X

301.2

225.9

Distortion

<0.1%

450

0.026X

271.5

203.6

BFL

12.5mm

400

0.030X

241.8

181.4

Mount

C-Mount

350

0.034X

212.1

159.1

Object Dimension

182mm×136.8mm(WD=300mm)

300

0.039X

182.0

136.8

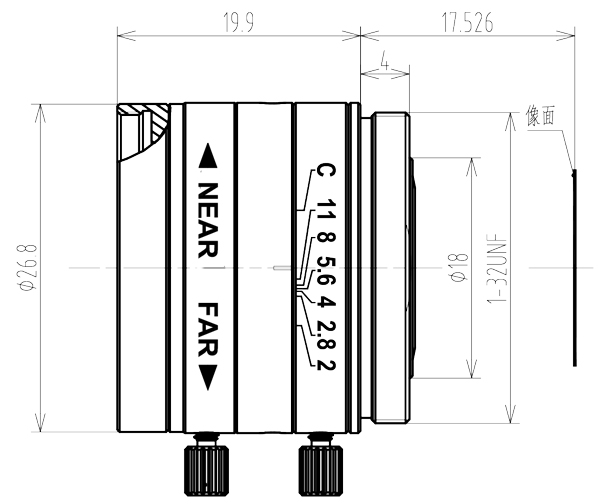

Dimension

Φ26.8×19.9mm

250

0.047X

152.7

114.5

Weight

32.0g

200

0.058X

123

92.3

Filter Thread

M25.5x 0.5

150

0.077X

93.3

70

Working Temperature

-20ºC ～ +60ºC

100

0.113X

63.7

47.8
