    FA Lens VM2520MP5 25mm Manual Iris Machine Vision Lens 1/1.8-inch F2.0 5MP C-Mount
    1/1.8″C-Mount f=25mm 5MP
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Small volume,compact appearance
    Convenient for small cameras
    Product Features
    Brand:ZLKC
    ◆ Image Size:1/1.8″ C-mount
    ◆ Focal length:f=25mm
    ◆ F No.:F2.0-C
    ◆ Features:1/1.8-inch 25mm 5MP Manual Iris Lens Small volume FA Lens C Mount HD Lens

    Model
    VM2520MP5

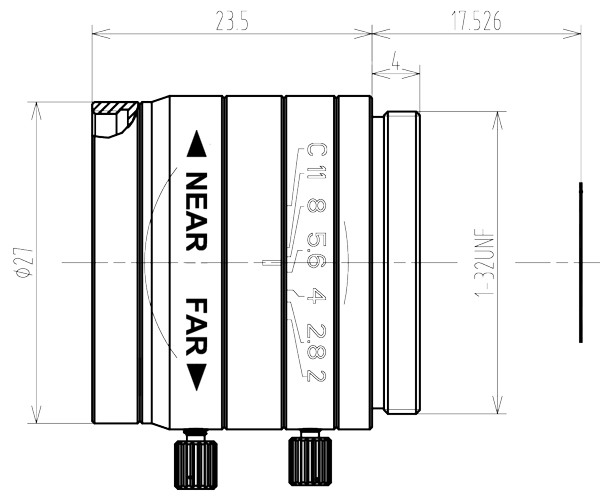

    Dimension


    Industries Application
    These are used in Industrial camera. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on

    5MP 25mm FA Lens C Mount

    Working Distance

    Optical Magnification

    1/1.8"Field of View(mm)

    Model

    VM2520MP5

    mm

    -

    H

    V

    Image Size

    1/1.8-inch

    900

    0.028X

    254.4

    190.8

    Focal length

    25mm

    850

    0.030X

    240.1

    180.1

    F No.

    F2.0-C

    800

    0.032X

    225.7

    169.3

    M.O.D(m)

    0.1-Inf.

    750

    0.034X

    211.4

    158.5

    Operation

    Iris

    Manual

    700

    0.036X

    197

    147.8

    Focus

    Manual

    650

    0.039X

    182.6

    137

    Horizontal

    Angle of View

    (D×H×V)

    1/1.8"

    19.0°×13.6°×11.3°

    600

    0.043X

    168.3

    126.2

    1/2.5"

    16.2°×13.4°×10.3°

    550

    0.047X

    153.9

    115.4

    1/3"

    13.8°×11.4°×8.8°

    500

    0.051X

    139.6

    104.7

    Distortion

    <0.1%

    450

    0.057X

    125.2

    93.9

    BFL

    13.7mm

    400

    0.065X

    110.8

    83.1

    Mount

    C-Mount

    350

    0.074X

    96.5

    72.3

    Object Dimension

    82.1mm×61.6mm(WD=300mm)

    300

    0.088X

    82.1

    61.6

    Dimension

    Φ26.8×23mm

    250

    0.106X

    67.7

    50.8

    Weight

    31.0g

    200

    0.135X

    53.3

    40

    Filter Thread

    M25.5x 0.5

    150

    0.186X

    38.9

    29.2

    Working Temperature

    -20ºC +60ºC

    100

    0.296X

    24.4

    18.3

    VM2520MP5 Specifications
