10MP 50mm Low distortion FA Lens C Mount |
Working Distance |
Optical Magnification |
2/3"Field of View(mm) |
|||
Model |
HM5028MP10 |
mm |
X |
H |
V |
|
Image Size |
2/3-inch |
5000 |
0.011X |
800.0 |
600.0 |
|
Focal length |
50mm |
3000 |
0.018X |
488.9 |
366.7 |
|
F No. |
F2.8-16 |
2000 |
0.027X |
325.9 |
244.4 |
|
M.O.D(m) |
0.3-Inf. |
1000 |
0.054X |
162.9 |
122.2 |
|
Operation |
Iris |
Manual |
800 |
0.068X |
129.4 |
97.1 |
Focus |
Manual |
750 |
0.073X |
120.5 |
90.4 |
|
Angle of View (D×H×V) |
2/3" |
12.3°×10.4°×8.4° |
700 |
0.078X |
112.8 |
84.6 |
1/2" |
9.6°×8.2°×6.6° |
650 |
0.084X |
104.8 |
78.6 |
|
1/3" |
7.2°×6.2°×5.2° |
600 |
0.092X |
95.7 |
71.7 |
|
Distortion |
<0.1% |
550 |
0.100X |
88.0 |
66.0 |
|
BFL |
12.4mm |
500 |
0.111X |
79.3 |
59.5 |
|
Mount |
C-Mount |
450 |
0.123X |
71.5 |
53.6 |
|
Object Dimension |
79.3mm×59.5mm (WD=500mm) |
400 |
0.139X |
63.3 |
47.5 |
|

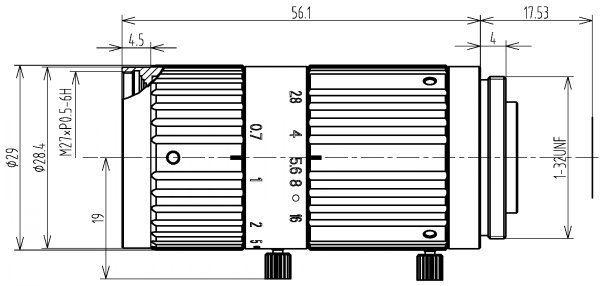

Dimension |
Φ29×56.1mm |
350 |
0.160X |
55.0 |
41.3 |
|
Weight |
83.0g |
300 |
0.188X |
46.8 |
35.1 |
|
Filter Thread |
M27x 0.5 |
- |
- |
- |
- |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
