10MP 35mm Low distortion FA Lens C Mount |
Working Distance |
Optical Magnification |
2/3"Field of View(mm) |
|||
Model |
HM3528MP10 |
mm |
X |
H |
V |
|
Image Size |
2/3-inch |
5000 |
0.007X |
1235 |
940.0 |
|
Focal length |
35mm |
2000 |
0.018X |
501.6 |
376.2 |
|
F No. |
F2.8-16 |
1000 |
0.035X |
251.1 |
188.4 |
|
M.O.D(m) |
0.1-Inf. |
900 |
0.039X |
226.1 |
169.6 |
|
Operation |
Iris |
Manual |
800 |
0.044X |
201.0 |
150.8 |
Focus |
Manual |
700 |
0.050X |
176.0 |
132.0 |
|
Angle of View (D×H×V) |
2/3" |
16.3°×13.1°×9.9° |
600 |
0.058X |
150.9 |
113.2 |
1/2" |
11.9°×9.5°×7.2° |
550 |
0.064X |
138.4 |
103.8 |
|
1/3" |
8.8°×7.2°×5.5° |
500 |
0.070X |
125.9 |
94.4 |
|
Distortion |
<0.1% |
450 |
0.078X |
113.4 |
85.0 |
|
BFL |
16.55mm |
400 |
0.087X |
100.8 |
75.6 |
|
Mount |
C-Mount |
350 |
0.100X |
88.3 |
66.2 |
|
Object Dimension |
300 |
0.116X |
75.8 |
56.8 |
||

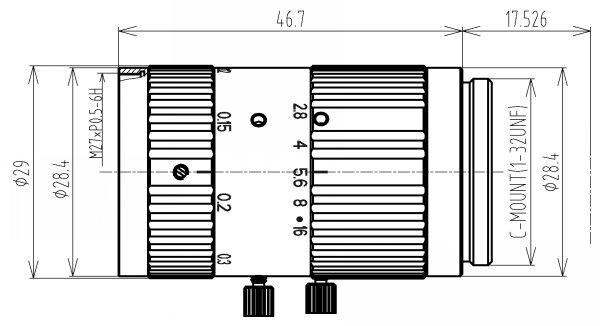

Dimension |
Φ29×46.7mm |
250 |
0.139X |
63.2 |
47.4 |
|
Weight |
58.2g |
200 |
0.174X |
50.7 |
38.0 |
|
Filter Thread |
M27x 0.5 |
150 |
0.231X |
38.1 |
28.6 |
|
Working Temperature |
-20ºC ~ +60ºC |
100 |
0.347X |
25.5 |
19.2 |
