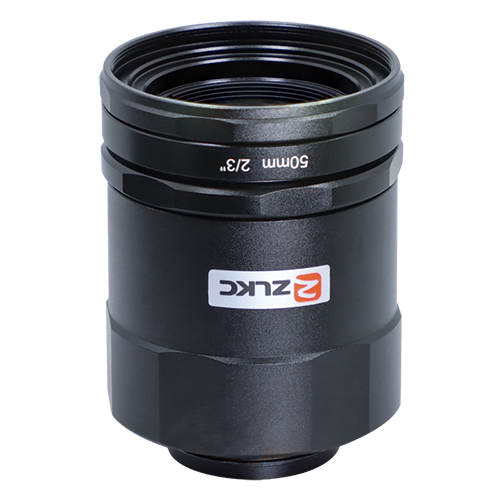

Anti-vabration lens 50mm C-Mount

Working Distance

Magnification

2/3"Field of View(mm)

Model

AM5014MP5

mm

-

H

V

Image Size

2/3-inch

2000

0.025X

352.0

264.0

Focal length

50mm

1000

0.051X

172.5

129.4

F No.

F1.4(Optional2.8/4/8/14/15/16)

900

0.057X

154.4

115.8

M.O.D(m)

0.3-Inf.

850

0.060X

146.7

110.0

Operation

Iris

Fix

800

0.064X

137.5

103.1

Focus

Manual

750

0.068X

129.4

97.1

Angle of View

(D×H×V)

2/3"

13.04°×10.5°×7.8°

700

0.073X

120.5

90.4

1/2"

9.5°×7.6°×5.3°

650

0.079X

111.4

83.5

Distortion

<0.4%

600

0.086X

102.6

76.9

BFL

12.4mm

550

0.094X

93.6

70.2

Mount

C-Mount

500

0.104X

84.6

63.5

Object Dimension

49.7mm×37.3mm(WD=300mm)

450

0.116X

75.9

56.9

Dimension

Φ39×47.5mm

400

0.131X

67.2

50.4

Weight

132.7g

350

0.150X

58.7

44.0

Front / Rear Effective Dia(mm)

Front Φ24 Rear Φ11.78

300

0.177X

49.7

37.3

Filter Thread

M37x 0.5

-

-

-

-

Working Temperature

-20ºC ～ +60ºC

-

-

-

-
