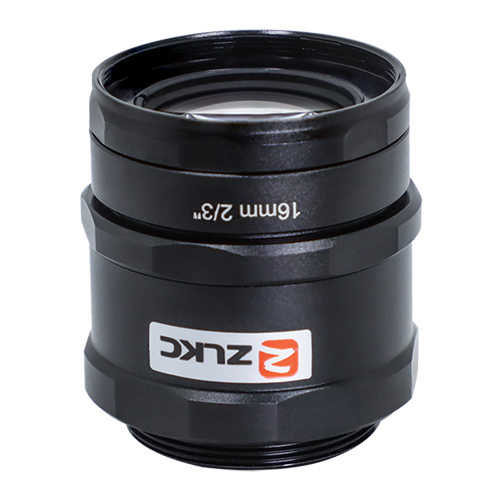

    Anti-vabration Lens AM1614MP5 16mm Lens 5MP 2/3-inch F1.4 C-Moun Low distortiont
    2/3″ C-Mount f=16mm 5MP
    Resist strong shock and impact
    Fixed aperture, various aperture available
    Low distortion,Excellent image uniformity
    high contrast,Stable structural design
    Used in high vibration and high impact machine vision
    Product Features
    Brand:ZLKC
    ◆ Image Size:2/3″ C-mount
    ◆ Focal length:f=16mm
    ◆ F No.:F1.4 (Optional 2.8/4/8/14/15/16)
    ◆ Features:Anti-vabration Lens 16mm 2/3-inch F1.4 Low distortion C Mount FA Lens

    Model
    AM1614MP5

    Dimension


    Industries Application
    These are used in high vibration and high impact machine vision. These cover applications from Robotic hand positioning, smart cameras, 3D stereo vision, drones, in-vehicle applications, handheld devices and so on

    Anti-vabration lens 35mm C-Mount

    Working Distance

    Magnification

    2/3"Field of View(mm)

    Model

    AM1614MP5

    mm

    -

    H

    V

    Image Size

    2/3-inch

    900

    0.018X

    503.2

    376.8

    Focal length

    16mm

    850

    0.019X

    475.6

    356.2

    F No.

    F1.4(Optional2.8/4/8/14/15/16)

    800

    0.020X

    448.0

    335.5

    M.O.D(m)

    0.3-Inf.

    750

    0.021X

    420.4

    314.8

    Operation

    Iris

    Fix

    700

    0.023X

    392.8

    294.1

    Focus

    Manual

    650

    0.024X

    365.2

    273.4

    Angle of View

    (D×H×V)

    2/3"

    38.1°×30.5°×23.1°

    600

    0.026X

    337.6

    252.8

    1/2"

    27.8°×22.3°×16.8°

    550

    0.029X

    310.0

    232.1

    Distortion

    <0.1%

    500

    0.031X

    282.5

    211.4

    BFL

    12.7mm

    450

    0.035X

    254.9

    190.7

    Mount

    C-Mount

    400

    0.039X

    227.3

    170.0

    Object Dimension

    170.4mm×127.6mm(WD=300mm)

    350

    0.044X

    199.7

    149.4

    Dimension

    Φ30.8×31.34mm

    300

    0.052X

    170.4

    127.6

    Weight

    63.7g

    250

    0.061X

    144.5

    108.0

    Front / Rear Effective Dia(mm)

    Front Φ19 Rear Φ14.2

    200

    0.076X

    116.9

    87.3

    Filter Thread

    M28.5x 0.5

    150

    0.100X

    89.3

    66.6

    Working Temperature

    -20ºC +60ºC

    100

    0.145X

    61.7

    45.9

    AM1614MP5 Specifications
