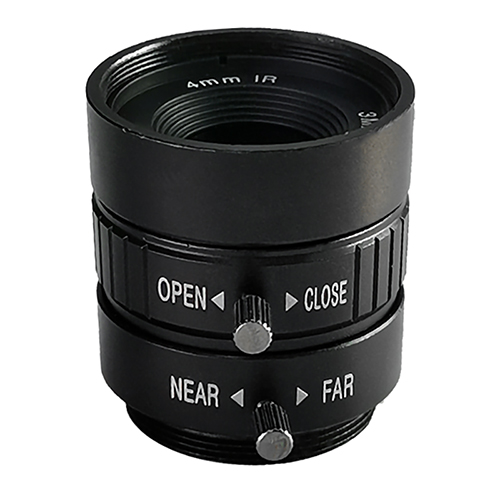

    CS-Mount Lens VM0412MPC 4mm Manual Iris Lens 1/2.7-inch 3MP
    1/2.7″ CS 4mm
    Can suppress stray light
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in CS-Mount Camera.
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.7″ C-mount
    ◆ Focal length：f=4mm
    ◆ F No.：F1.6-C
    ◆ Features：1/2.7-inch 4mm 3MP Manual Iris Lens CS Mount HD Lens

    ※ Model
    VM0412MPC

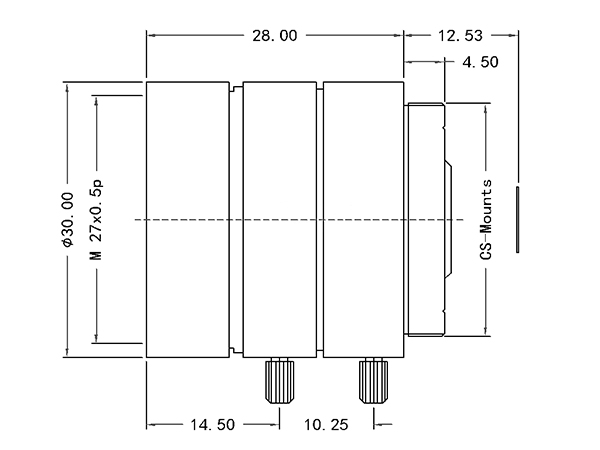

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM0412MPC

    Image Size

    1/2.7-inch

    Focal length

    4mm

    F No.

    F1.6

    M.O.D(m)

    0.2m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1/3" Type

    55.5°x43°

    1/2.7" Type

    66.9°x52.7°

    Distortion

    1/2.7"Type

    -3.8%

    Back focal length

    7.53mm

    Filter

    M27 P=0.5mm

    Mount

    CS-Mount

    Dimension

    Ф30x28mm

    Weight

    47.0g

    Remark

    3MP LENS

    VM0412MPC Specifications
