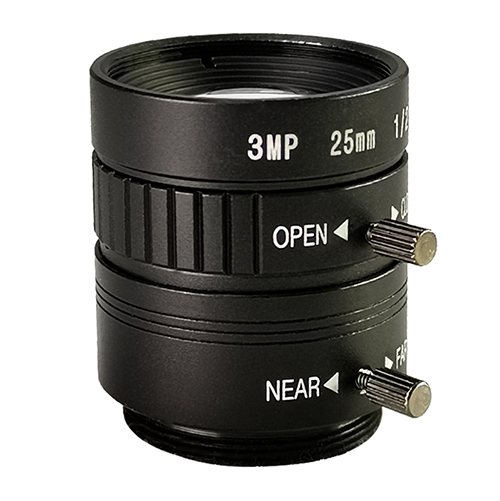

    CS-Mount Lens VM2512MPC 25mm Manual Iris Lens 1/1.8-inch 3MP
    1/1.8″ CS 25mm
    Can suppress stray light
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in CS-Mount Camera.
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ C-mount
    ◆ Focal length：f=25mm
    ◆ F No.：F1.6-C
    ◆ Features：1/1.8-inch 25mm 3MP Manual Iris Lens CS Mount HD Lens

    ※ Model
    VM2512MPC

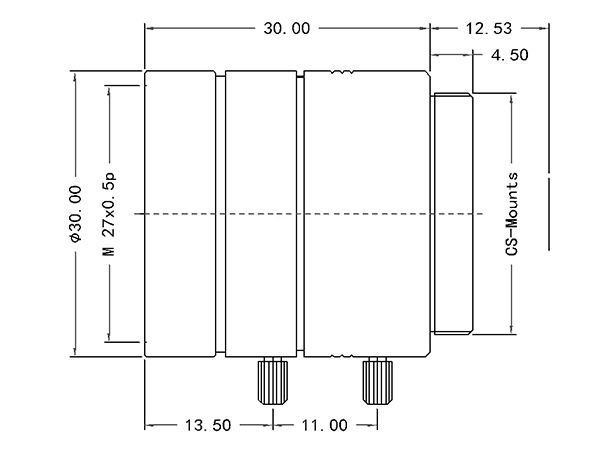

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM2512MPC

    Image Size

    1/1.8-inch

    Focal length

    25mm

    F No.

    F1.6

    M.O.D(m)

    0.25m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1/2" Type

    14.0°x10.5°

    1/1.8"Type

    16.1°x12.1°

    Distortion

    1/1.8"Type

    -0.5%

    Filter

    M27 P=0.5mm

    Mount

    CS-Mount

    Dimension

    Ф30x30mm

    Weight

    59.0g

    Remark

    3MP LENS

    VM2512MPC Specifications
