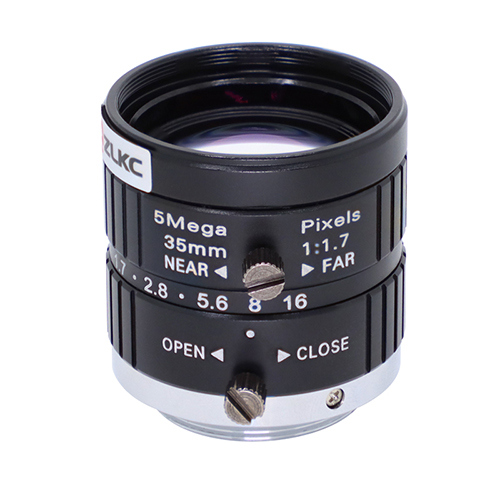

    C-Mount Lens VM3518MPC 35mm 5MP F1.7 Manual Iris camera Lens 2/3-inch
    2/3″C-Mount 35mm F1.7
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=35mm
    ◆ F No.：F1.7-C
    ◆ Features：Manual Iris Lens 2/3-inch 35mm F1.7 C Mount Industrial camera Lens

    ※ Model
    VM3518MPC

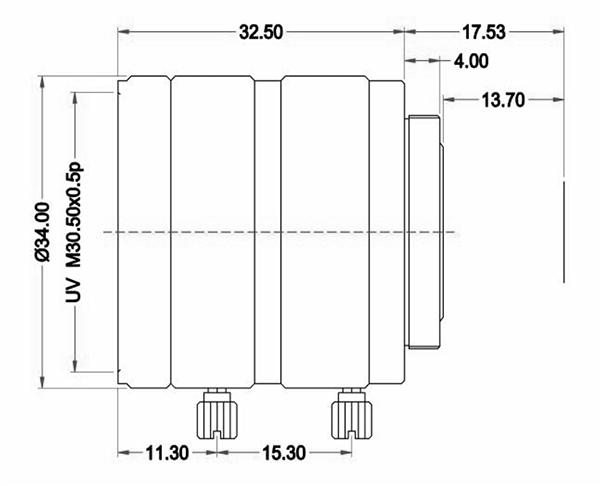

    ※ Dimension


    ※ Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on

    Model

    VM3518MPC

    Image Size

    2/3-inch

    Focal length

    35mm

    F No.

    F1.7

    M.O.D(m)

    0.3m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    视场角Horizontal Angle of View

    2/3"Type

    14.8°x10.8°

    1/1.8"Type

    11.8°x8.8°

    1/2" Type

    10.5°x7.9°

    接口Mount

    C-Mount

    畸变TV Distortion

    -0.2%

    外形尺寸Dimension

    Ф34x32.5mm

    重量Weight

    115.0g

    滤镜尺寸Filter

    M30.5 P=0.5mm

    备注Remark

    5MP HD LENS

    VM3518MPC Specifications
