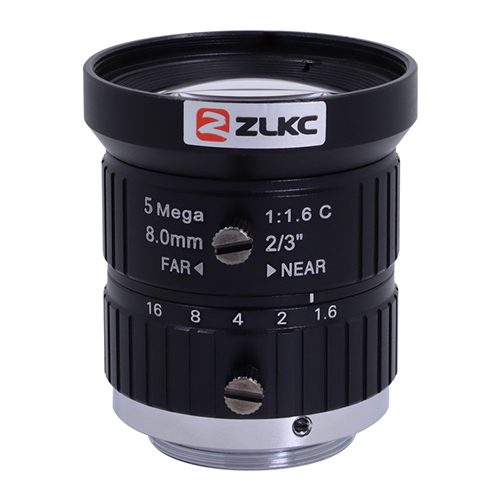

    C-Mount Lens VM0816MPC 8mm 5MP F1.6 Manual Iris camera Lens 2/3-inch
    2/3″C-Mount 8mm F1.6
    High resolution ,high clarity
    Can suppress stray light
    High resolution ,high clarity
    Locking set screws for focus and Iris
    Lower price,High cost performance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Focal length：f=8mm
    ◆ F No.：F1.6-C
    ◆ Features：Manual Iris Lens 2/3-inch 8mm F1.6 C Mount Industrial camera Lens

    ※ Model
    VM0816MPC

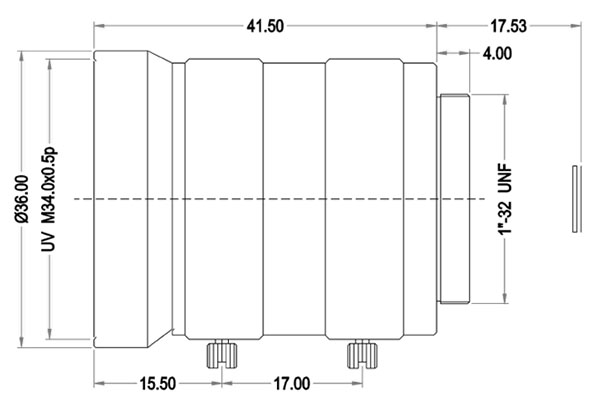

    ※ Dimension


    ※ Industries Application
    Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on

    Model

    VM0816MPC

    Image Size

    2/3-inch

    Focal length

    8mm

    F No.

    F1.6

    M.O.D(m)

    0.1m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    2/3" Type

    56.5°x43.9°

    1/1.8" Type

    47.4°x36.3°

    Distortion

    2/3" Type

    -0.7%

    Mount

    C-Mount

    Dimension

    Ф36x41.5mm

    Weight

    101.0g

    Filter

    M34 P=0.5mm

    Remark

    5MP HD LENS

    VM0816MPC Specifications
