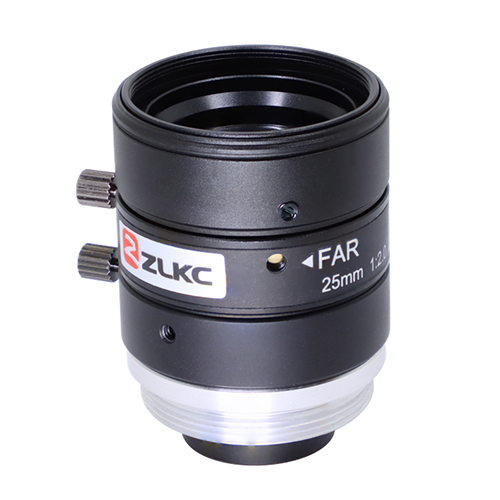

10MP Low distance lens 25mm 2/3”C Mount |
||
Model |
LM2520MP10 |
|
Image circle |
2/3-inch (Φ11.4) |
|
Focal length |
25mm±5% |
|
F No. |
F2.0-16 |
|
M.O.D(m) |
0.2-Inf. |
|
Operation |
Iris |
Manual |
Focus |
Manual |
|
Horizontal Angle of View |
2/3"Type |
23.9°×18.3°×15.4° |
1/1.8"Type |
19.4°×15.8°×10.7° |
|
1/2"Type |
17.4°×14.0°×10.5° |
|
Distortion |
At 0.4m |
-0.14% |
Back focal length |
9.97mm |
|
Flange Back Focal Length |
17.526mm |
|
Mount |
C-Mount |
|
Relative Illumination |
63% |
|
CRA |
7.5° |
|

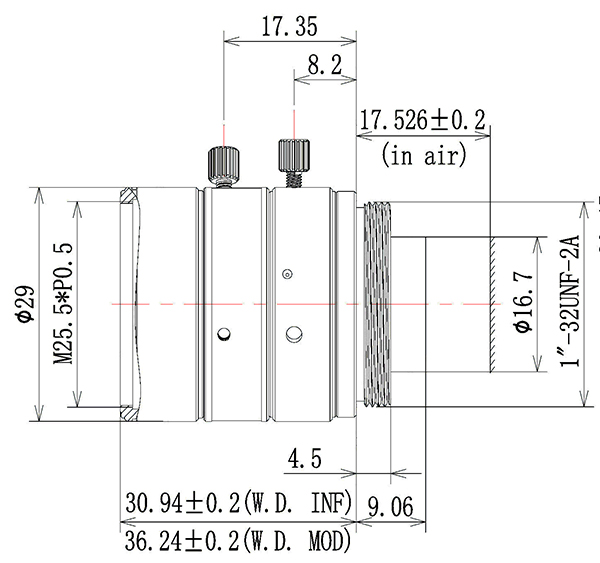

Dimension |
Ф29x30.94mm |
|
Weight |
59.5g |
|
Lens structure |
5groups,8elements |
|
Filter Thread |
M25.5*P0.5 |
|
Working Temperature |
-20ºC ~ +60ºC |
