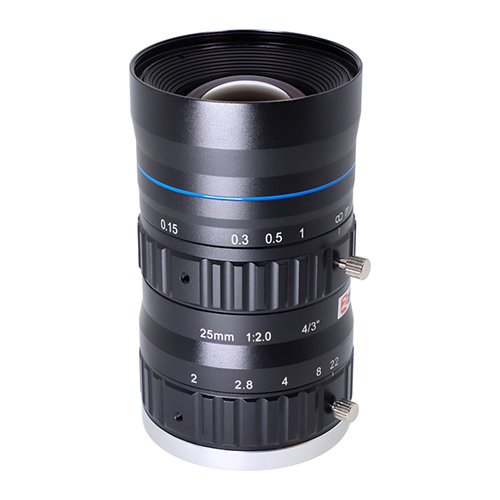

12MP FA Lens KM2520MP12 25mm Large Format Sensor 4/3-inch F2.0 C-Mount

12MP FA Lens KM2520MP12 25mm Large Format Sensor 4/3-inch F2.0 C-Mount: 4/3″ C-Mount f=25mm F2.0; Ultra-High Resolution 12MP; Low distortion,wavelength 420-1000nm; high contrast,Can suppress stray light; Locking set screws for focus and Iris; compact appearance for device integration

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ Product Features
◆ Brand：ZLKC
◆ Image Size：4/3″ C-mount
◆ Focal length：f=25mm
◆ F No.：F2.0-22
◆ Features：4/3-inch Large Format Lens 25mm C Mount 12MP Manual Iris Lens

※ Model
KM2520MP12

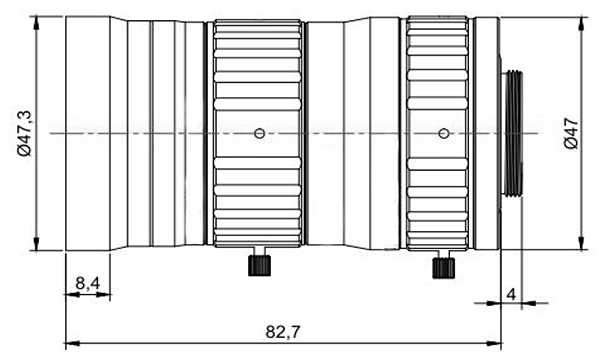

※ Dimension

※ Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

Model		KM2520MP12
Image Size		4/3-inch
Focal length		25mm
F No.		F2.0-22
M.O.D(m)		0.1-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	4/3" Type	49.8°×40.6°×31.1°
	1"Type	37.6°×29.1°×19.8°
	1/2"Type	18.3°×14.6°×11.1°
Distortion		-0.64%@y=11.5㎜;-0.15%@y=4㎜
Flange BFL		17.526mm
Back focal length		22mm
Mount		C-Mount
4/3"FOV		125.7mm×94.1mm(WD=150mm)
Dimension		Ф47.3x82.7mm
Weight		253.5g
Filter Thread		M46x 0.75mm
Working Temperature		-20ºC ～ +60ºC
