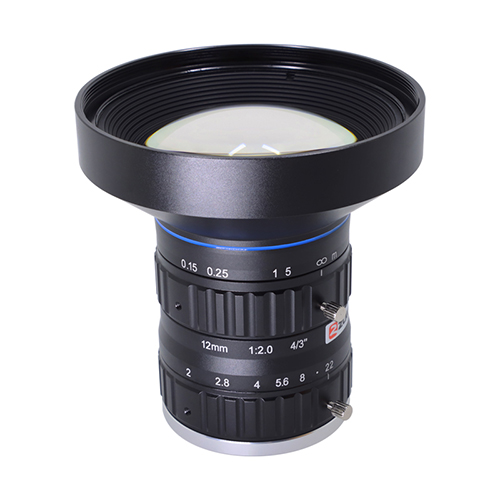

12MP FA Lens KM1220MP12 12mm Large Format Sensor 4/3-inch F2.0 C-Mount

12MP FA Lens KM1220MP12 12mm Large Format Sensor 4/3-inch F2.0 C-Mount: 4/3″ C-Mount f=12mm F2.0; Ultra-High Resolution 12MP; Low distortion,wavelength 420-1000nm; high contrast,Can suppress stray light; Locking set screws for focus and Iris; compact appearance for device integration

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ Product Features
◆ Brand：ZLKC
◆ Image Size：4/3″ C-mount
◆ Focal length：f=12mm
◆ F No.：F2.0-22
◆ Features：4/3-inch Large Format Lens 12mm C Mount 12MP Manual Iris Lens

※ Model
KM1220MP12

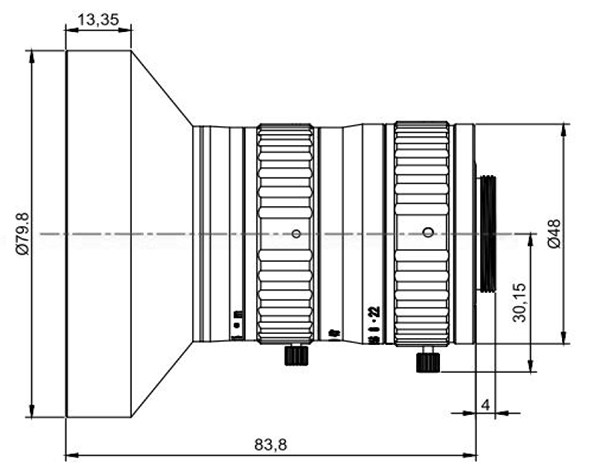

※ Dimension

※ Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

Model		KM1220MP12
Image Size		4/3-inch
Focal length		12mm
F No.		F2.0-22
M.O.D(m)		0.15-Inf.
Operation	Iris	Manual
	Focus	Manual
Horizontal Angle of View	4/3" Type	89.2°×76.8°×61.4°
	1"Type	69.1°×57.8°×44.3°
	1/2"Type	37.4°×30.2°×22.7°
Distortion		-2.05%@y=11.5㎜;-1.0%@y=4㎜
Flange BFL		17.526mm
Back focal length		18.8mm
Mount		C-Mount
4/3"FOV		262.7mm×204.5mm(WD=150mm)
Dimension		Ф79.8x83.8mm
Weight		452.2g
Filter Thread		M77x 0.75mm
Working Temperature		-20ºC ～ +60ºC
