    12 mega-pixels 1.1-inch Marco Lens(Line Scan camera lens) TM7538MP12 75mm C-Mount
    1.1″C-Mount 75mm 12MP
    Ultra-low object distance
    Can suppress stray light
    Low distortion,High resolution
    Locking set screws for focus and Iris
    Product Features
    Brand:ZLKC
    ◆ Image Circle:1.1"(Φ17.6) C-Mount
    ◆ Focal length:f=75mm
    ◆ F No.:F3.8
    ◆ Features:75mm 1.1-inch Marco Lens(Line Scan camera lens)  C-Mount lens

    Model
    TM7538MP12

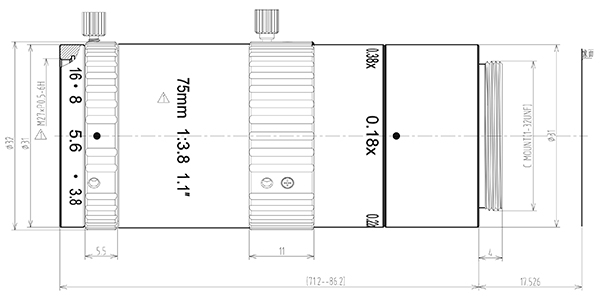

    Dimension


    Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    1.1-inch 12MP 75mm marco lens C Mount

    Model

    TM7538MP12

    Image Size

    1.1-inch

    Focal length

    75mm

    F No.

    F3.8-16

    Distortion

    <0.05%

    Operation

    Iris

    Manual

    Focus

    Manual

    Mount

    C-Mount

    Dimension

    Φ31×71.2mm

    Filter

    M27x 0.5

    Working Temperature

    -20ºC +60ºC

    Working Distance(mm)

    Optical Magnification

    1.1"Φ17.6Field of View

    1"Φ16Field of View

    2/3"Φ11Field of View

    H

    V

    H

    V

    H

    V

    471

    -0.18X

    78.22

    58.66

    71.11

    53.33

    48.88

    36.66

    457

    -0.186X

    75.69

    56.77

    68.81

    51.61

    47.31

    35.48

    432

    -0.2X

    70.4

    52.8

    64

    48

    44

    33

    407

    -0.214X

    65.79

    45.71

    59.81

    44.85

    41.12

    30.84

    382

    -0.231X

    60.95

    45.71

    55.41

    41.55

    38.09

    28.57

    357

    -0.25X

    56.32

    42.24

    51.2

    38.4

    35.2

    26.4

    332

    -0.274X

    51.38

    38.54

    46.71

    35.03

    32.11

    24.08

    307

    -0.302X

    46.62

    34.96

    42.38

    31.78

    29.13

    21.85

    282

    -0.337X

    41.78

    31.33

    37.98

    28.48

    26.11

    19.58

    257

    -0.38X

    37.5

    27.78

    33.68

    25.26

    23.15

    17.36

    TM7538MP12 Specifications
