    12 mega-pixels 1.1-inch Marco Lens(Line Scan camera lens) TM1628MP12 16mm C-Mount
    1.1″C-Mount 16mm 12MP
    Ultra-low object distance
    Can suppress stray light
    Low distortion,High resolution
    Locking set screws for focus and Iris
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Circle：1.1"(Φ17.6) C-Mount
    ◆ Focal length：f=16mm
    ◆ F No.：F2.8
    ◆ Features：16mm 1.1-inch Marco Lens(Line Scan camera lens)  C-Mount lens

    ※ Model
    TM1628MP12

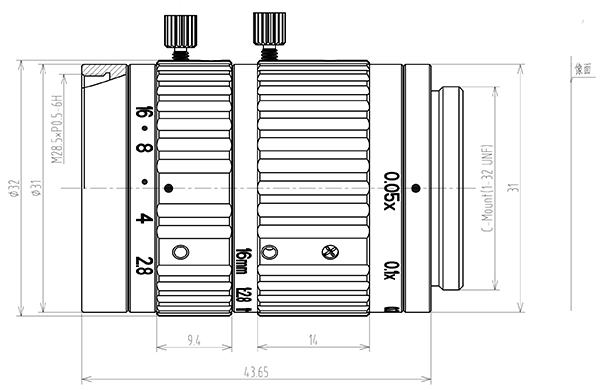

    ※ Dimension


    ※ Industries Application
    These are used in machine vision imaging and detection of extra long/large size workpieces. High resolution and high measurement accuracy,Small Magnification and low distortionand the Multi-layer Coating can reduce flaring and vignetting and effectively improve light transmittance and image quality.These cover applications from PCB, LCD, lithium battery, photovoltaic testing, precision positioning, automotive, industrial equipment and other defect detection.

    1.1-inch 12MP 16mm marco lens C Mount

    Model

    TM1628MP12

    Image Size

    1.1-inch

    Focal length

    16mm

    F No.

    F2.8-16

    Distortion

    <0.3%

    Operation

    Iris

    Manual

    Focus

    Manual

    Mount

    C-Mount

    Dimension

    Φ31×43.65mm

    Filter

    M28.5x 0.5

    Working Temperature

    -20ºC ～ +60ºC

    Working Distance(mm)

    Optical Magnification

    1.1"（Φ17.6）Field of View

    1"（Φ16）Field of View

    2/3"（Φ11）Field of View

    H

    V

    H

    V

    H

    V

    546

    -0.03X

    474

    356

    433

    325

    299

    224

    321

    -0.05X

    284

    213

    260

    195

    179

    134

    152

    -0.1X

    142

    106

    144

    108

    89

    66.8

    94

    -0.15X

    92.8

    70

    84

    63

    58

    43.5

    66

    -0.2X

    66.4

    50

    62.4

    46.8

    42.9

    32

    52

    -0.25X

    56.6

    42

    51.2

    38.4

    35.2

    26.4

    TM1628MP12 Specifications
