8MP Lens VM5028MP8 50mm Manual Iris 2/3-inch F2.8 C-Mount: 2/3″C-Mount f=50mm F2.8; Can suppress stray light; Low distortion,high contrast; Locking set screws for focus and Iris; Metal structure，compact appearance; Used in Industrial Camera,ITS Camera

View phone

Inquiry now

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Focal length：f=50mm
◆ F No.：F2.8-16
◆ Features：2/3-inch 50mm Manual Iris Lens FA Lens C Mount HD Lens

※ Model
VM5028MP8

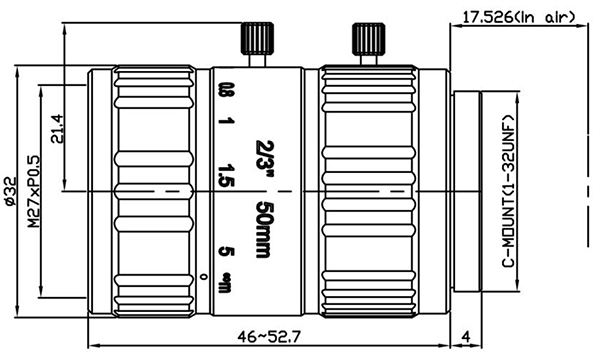

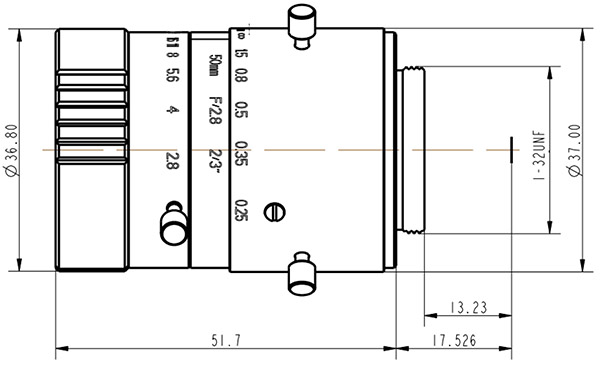

※ Dimension

※ Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

8MP 50mm FA Lens C Mount			Working Distance	Magnification	2/3"Field of View(mm)
Model		VM5028MP8	mm	X	H	V
Image Size		2/3-inch	1200	0.042X	212.2	159.1
Focal length		50mm	1000	0.050X	176.8	132.6
F No.		F2.8-16	900	0.055X	161.7	121.2
M.O.D(m)		0.25-Inf.	850	0.058X	152.5	114.4
Operation	Iris	Manual	800	0.061X	143.3	107.5
Operation	Focus	Manual	750	0.066X	134.2	100.6
Angle of View (D×H×V)	2/3"	10.1°×7.6°	700	0.070X	125.0	93.7
	1/1.7"	8.6°×6.5°	650	0.076X	115.8	86.9
	1/1.8"	8.1°×6.1°	600	0.083X	106.7	80.0
	1/2"	7.3°×5.5°	550	0.090X	97.5	73.1
TV Distortion	-0.01%		500	0.100X	88.3	66.2
Flange FL	17.526mm		450	0.111X	79.2	59.4
Mount	C-Mount		400	0.126X	70.0	52.5
2/3"FOV	51.7mm×38.7mm(WD=300mm)		350	0.145X	60.8	45.6
Dimension	Φ32×46mm		300	0.170X	51.7	38.7
Weight	68.0g		250	0.207X	42.5	31.9
Resolution	8MP		200	0.264X	33.3	25.0
Filter	M27 P=0.5mm		150	0.364X	24.2	18.1
Working Temperature	-20ºC ～ +60ºC		100	0.587X	15.0	11.1
