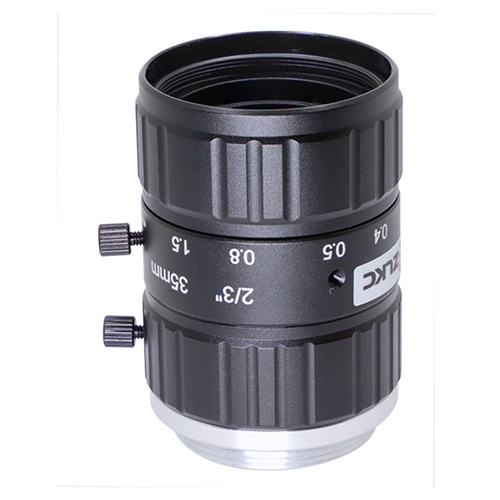

8MP Lens VM3528MP8 35mm Manual Iris 2/3-inch F2.8 C-Mount: 2/3″C-Mount f=35mm F2.8; Can suppress stray light; Low distortion,high contrast; Locking set screws for focus and Iris; Metal structure，compact appearance; Used in Industrial Camera,ITS Camera

View phone

Inquiry now

Tel:+86 13570283679

Introduction Specifications Download Other Product

※ Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Focal length：f=35mm
◆ F No.：F2.8-16
◆ Features：2/3-inch 35mm Manual Iris Lens FA Lens C Mount HD Lens

※ Model
VM3528MP8

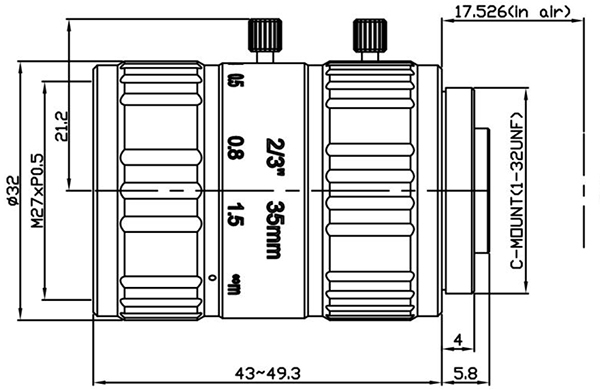

※ Dimension

※ Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

8MP 35mm FA Lens C Mount			Working Distance	Magnification	2/3"Field of View(mm)
Model		VM3528MP8	mm	X	H	V
Image Size		2/3-inch	2000	0.018X	496.7	372.5
Focal length		35mm	1000	0.035X	251.4	188.6
F No.		F2.8-16	900	0.039X	226.3	169.7
M.O.D(m)		0.15-Inf.	850	0.041X	213.7	160.3
Operation	Iris	Manual	800	0.044X	201.1	150.9
Operation	Focus	Manual	750	0.047X	188.6	141.4
Angle of View (D×H×V)	2/3"	14.3°×10.8°	700	0.050X	176.0	132.0
	1/1.7"	12.3°×9.2°	650	0.054X	163.4	122.6
	1/1.8"	11.6°×8.7°	600	0.058X	150.9	113.1
	1/2"	10.4°×7.8°	550	0.064X	138.3	103.7
TV Distortion	-0.06%		500	0.070X	125.7	94.3
Flange FL	17.526mm		450	0.078X	113.1	84.9
Mount	C-Mount		400	0.088X	100.6	75.4
2/3"FOV	50.3mm×37.7mm(WD=200mm)		350	0.100X	88.0	66.0
Dimension	Φ32×43mm		300	0.117X	75.4	56.6
Weight	70.5g		280	0.125X	70.4	52.8
Resolution	8MP		250	0.140X	62.9	47.1
Filter	M27 P=0.5mm		200	0.175X	50.3	37.7
Working Temperature	-20ºC ～ +60ºC		150	0.233X	37.7	28.3
