    FA Lens VM0812MP 8mm Manual Iris Lens 1/2-inch F1.4 3MP C-Mount
    1/2″C-Mount f=8mm F1.4
    Can suppress stray light
    Low distortion,high contrast
    Locking set screws for focus and Iris
    Metal structure，compact appearance
    Used in Industrial Camera,ITS Camera
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2″ C-mount
    ◆ Focal length：f=8mm
    ◆ F No.：F1.4-C
    ◆ Features：1/2-inch 8mm 3MP Manual Iris Lens  FA  Lens C Mount HD Lens

    ※ Model
    VM0812MP

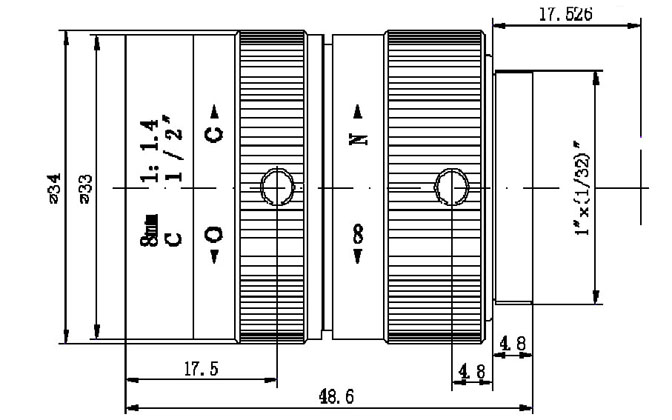

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM0812MP

    Image Size

    1/2-inch

    Focal length

    8mm

    F No.

    F1.4

    M.O.D(m)

    0.2m-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Distortion

    1/3" Type

    -0.2%

    1/2" Type

    -0.1%

    Horizontal Angle of View

    1/2"Type

    42.5°

    Mount

    C-Mount

    Dimension

    Ф34x48.6mm

    Weight

    108.0g

    Remark

    3MP LENS

    VM0812MP Specifications
