    12MP FA Lens HK5020MP12 50mm Low distortion Lens 1-inch F2.0 C-Mount
    1″ C-Mount f=50mm F2.0
    High resolution,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Low distortion 0.01% or less
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=50mm
    ◆ F No.：F2.0-C
    ◆ Features：1-inch FA Lens 50mm 12MP Manual Iris Lens, Fixed focus Lens Low distortion C Mount HD Lens

    ※ Model
    HK5020MP12

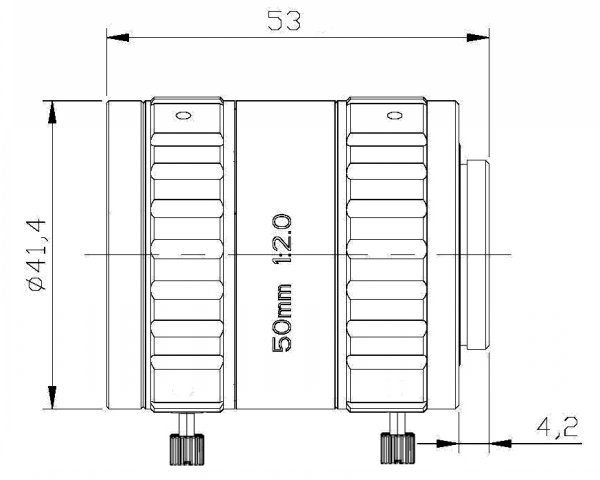

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HK5020MP12

    Image Size

    1-inch

    Focal length

    50mm

    F No.

    F2.0-close

    M.O.D(m)

    0.25-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    18.4°×14.7°×11.0°

    1/2"Type

    9.3°×7.4°×5.5°

    1/3"Type

    7.0°×5.5°×4.2°

    Distortion

    -0.01%

    Back focal length

    21.35mm

    Mount

    C-Mount

    1"FOV

    57.9mm×43.3mm(WD=250mm)

    Dimension

    Ф41.4x48.8mm

    Weight

    125.0g

    Horizontal Resolution

    180lp/mm

    Filter Thread

    M37x 0.5mm

    Working Temperature

    -20ºC ～ +60ºC

    HK5020MP12 Specifications
