    12MP FA Lens HK2518MP12 25mm Low distortion Lens 1-inch F1.8 C-Mount
    1″ C-Mount f=25mm F1.8
    High resolution,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Low distortion 0.15% or less
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=25mm
    ◆ F No.：F1.8-C
    ◆ Features：1-inch FA Lens 25mm 12MP Manual Iris Lens, Fixed focus Lens Low distortion C Mount HD Lens

    ※ Model
    HK2518MP12

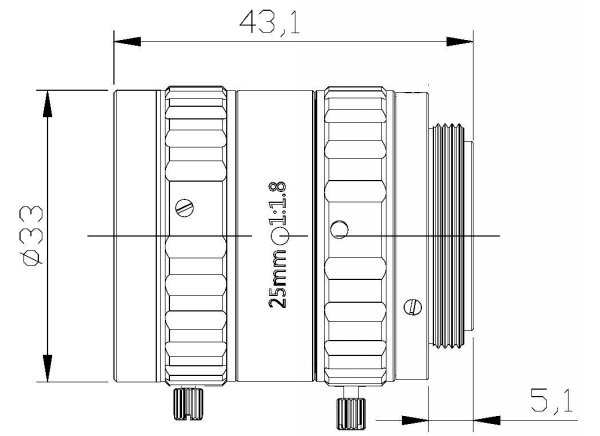

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HK2518MP12

    Image Size

    1-inch

    Focal length

    25mm

    F No.

    F1.8-close

    M.O.D(m)

    0.15-Inf.

    Operation

    Iris

    Manual

    Focus

    Manua

    Horizontal Angle of View

    1"  Type

    36.2°×29.1°×21.9°

    1/2"Type

    18.5°×14.7°×11.1°

    1/3"Type

    13.8°×11.1°×8.3°

    Distortion

    -0.15%

    Back focal length

    12.68mm

    Mount

    C-Mount

    1"FOV

    73.3mm×54.6mm(WD=150mm)

    Dimension

    Ф33x38mm

    Weight

    89.3g

    Horizontal Resolution

    180lp/mm

    Filter Thread

    M30.5x 0.5mm

    Working Temperature

    -20ºC ～ +60ºC

    HK2518MP12 Specifications
