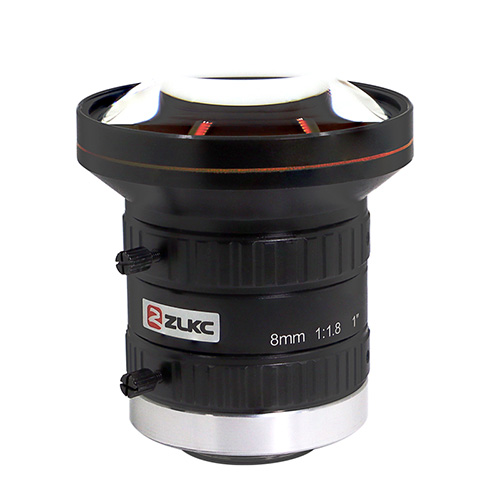

    12MP FA Lens HK0818MP12 8mm Low distortion Lens 1-inch F1.8 C-Mount
    1″ C-Mount f=8mm F1.8
    High resolution,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Low distortion 2.14% or less
    Locking set screws for focus and Iris
    compact appearance for device integration
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1″ C-mount
    ◆ Focal length：f=8mm
    ◆ F No.：F1.8
    ◆ Features：1-inch FA Lens 8mm 12MP Manual Iris Lens, Fixed focus Lens Low distortion C Mount HD Lens

    ※ Model
    HK0818MP12

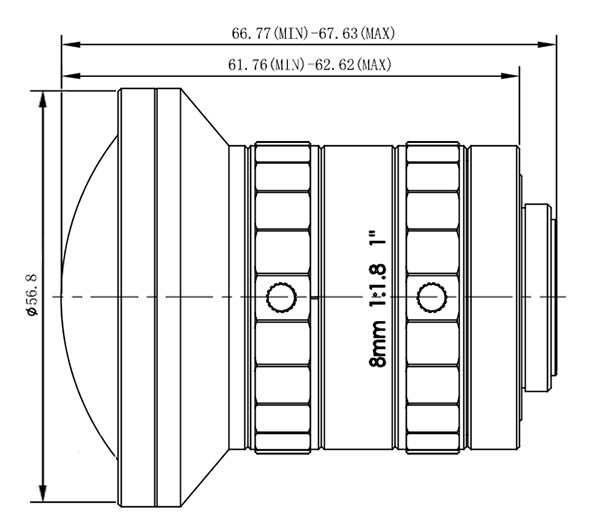

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    HK0818MP12

    Image Size

    1-inch

    Focal length

    8mm

    F No.

    F1.8-C

    M.O.D(m)

    0.3-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1" Type

    90.1°×77.2°×61.3°

    1/2"Type

    52.3°×42.6°×32.4°

    1/3"Type

    40.1°×32.4°×24.5°

    Distortion

    -4.12%@y=8㎜;2.14%@y=4.0㎜

    Back focal length

    12.7mm

    Mount

    C-Mount

    1"FOV

    508.28×395.65mm (WD=300mm)

    Dimension

    Ф56.8x57.6mm

    Weight

    235.0g

    Horizontal Resolution

    160lp/mm

    Filter Thread

    -

    Working Temperature

    -20ºC ～ +60ºC

    HK0818MP12 Specifications
