20MP 50mm Low distortion FA Lens C Mount |
Working Distance |
Optical Magnification |
1.1"Field of View(mm) |
|||
Model |
HK5028MP20 |
mm |
X |
H |
V |
|
Image Size |
1.1-inch |
5000 |
0.010X |
1379.0 |
1035.5 |
|
Focal length |
50mm |
2000 |
0.026X |
547.1 |
410.7 |
|
F No. |
F2.8-22 |
1000 |
0.052X |
273.5 |
205.3 |
|
M.O.D(m) |
0.3-Inf. |
900 |
0.057X |
245.6 |
184.3 |
|
Operation |
Iris |
Manual |
800 |
0.065X |
218.3 |
163.8 |
Focus |
Manual |
750 |
0.069X |
204.5 |
153.4 |
|
Angle of View (D×H×V) |
1.1" |
19.9°×15.9°×11.9° |
700 |
0.074X |
190.6 |
143.0 |
1" |
18.2°×14.6°×10.9° |
650 |
0.080X |
176.7 |
132.5 |
|
2/3" |
12.6°×10.1°×7.5° |
600 |
0.087X |
162.8 |
122.1 |
|
Distortion |
<0.02% |
550 |
0.095X |
148.9 |
111.7 |
|
BFL |
21.1mm |
500 |
0.105X |
134.9 |
99.0 |
|
Mount |
C-Mount |
450 |
0.117X |
121.0 |
90.7 |
|
Object Dimension |
134.9mm×99.0mm(WD=500mm) |
400 |
0.132X |
107.0 |
80.2 |
|

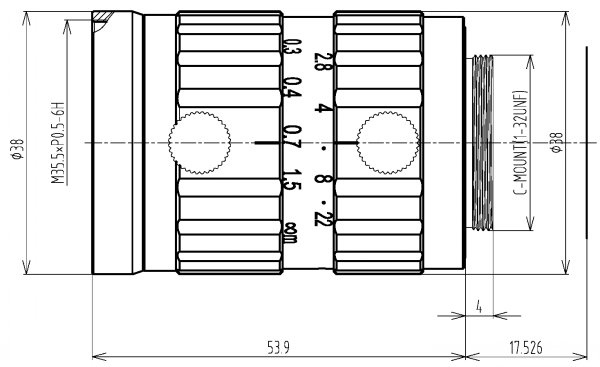

Dimension |
350 |
0.152X |
92.9 |
69.7 |
||
Weight |
126.8g |
300 |
0.179X |
79.0 |
59.3 |
|
Filter Thread |
M35.5x 0.5 |
- |
- |
- |
- |
|
Working Temperature |
-20ºC ~ +60ºC |
- |
- |
- |
- |
