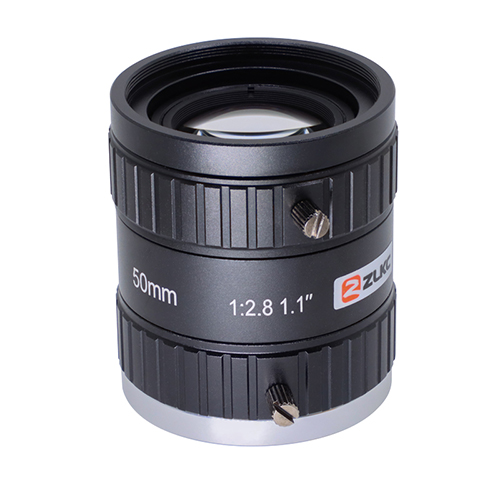

    20MP Large Format Lens FK5028MP20 Sensor 1.1-inch 50mm F2.8 C-Mount
    1.1″ C-Mount f=50mm F2.8
    Low distortion,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Locking set screws for focus and Iris
    Compact & Light weight
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1.1″ C-mount
    ◆ Focal length：f=50mm
    ◆ F No.：F2.8-22
    ◆ Features：1.1-inch Large Format Lens 50mm C Mount 20MP Manual Iris Lens

    ※ Model
    FK5028MP20

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    FK5028MP20

    Image Size

    1.1-inch

    Focal length

    50mm

    F No.

    F2.8-22

    M.O.D(m)

    0.25-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1.1"  Type

    20.0°×16.0°×12.0°

    1"Type

    18.4°×14.7°×11.0°

    1/2"Type

    9.3°7.4°×5.5°

    1/3"Type

    7.0°×5.5°×4.2°

    Distortion

    -0.05%@y=8.8㎜;-0.01%@y=4㎜

    Flange BFL

    17.526mm

    Back focal length

    21.3mm

    Mount

    C-Mount

    1.1"FOV

    63.44mm×47.58mm(WD=250mm)

    Dimension

    Ф41.4x48.3mm

    Weight

    128.0g

    Filter Thread

    M37x 0.5mm

    Working Temperature

    -20ºC ～ +60ºC

    FK5028MP20 specification
