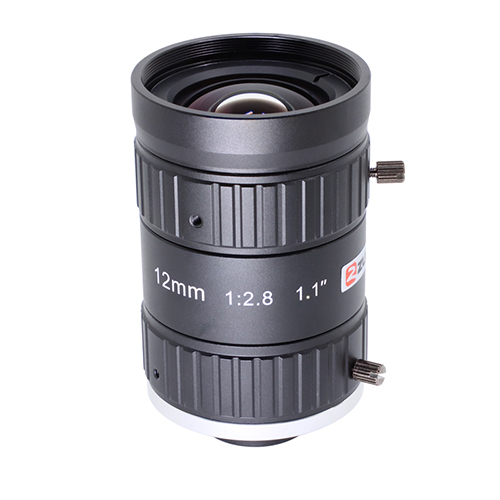

    20MP Large Format Lens FK1228MP20 Sensor 1.1-inch 12mm F2.8 C-Mount
    1.1″ C-Mount f=12mm F2.8
    Low distortion,wavelength 420-1000nm
    high contrast,Can suppress stray light
    Locking set screws for focus and Iris
    Compact & Light weight
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1.1″ C-mount
    ◆ Focal length：f=12mm
    ◆ F No.：F2.8-22
    ◆ Features：1.1-inch Large Format Lens 12mm C Mount 20MP Manual Iris Lens

    ※ Model
    FK1228MP20

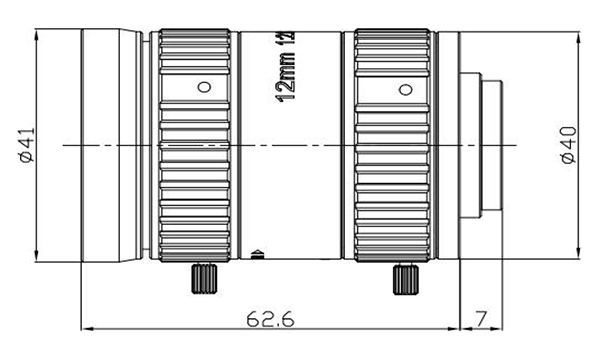

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    FK1228MP20

    Image Size

    1.1-inch

    Focal length

    12mm

    F No.

    F2.8-22

    M.O.D(m)

    0.1-Inf.

    Operation

    Iris

    Manual

    Focus

    Manual

    Horizontal Angle of View

    1.1"  Type

    70.6°×59.2°×45.4°

    1"Type

    67.6°×56.7°×43.5°

    1/2"Type

    37.1°×29.4°×22.0°

    1/3"Type

    27.6°×22.1°×16.8°

    Distortion

    -0.85%@y=8.8㎜;-0.6%@y=4㎜

    Flange BFL

    17.526mm

    Back focal length

    10.6mm

    Mount

    C-Mount

    1.1"FOV

    133.1mm×99.8mm(WD=100mm)

    Dimension

    Ф41x62.6mm

    Weight

    203.0g

    Filter Thread

    M37.5x 0.5mm

    Working Temperature

    -20ºC ～ +60ºC

    FK1228MP20 specification
