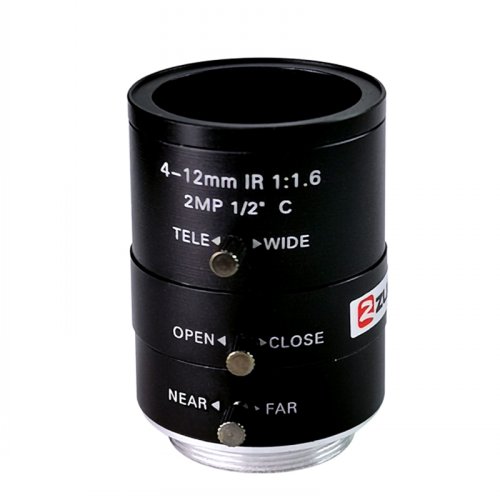

    ZLKC Lens VM04012MPC Manual Iris Lens 2 Megapixel 4-12mm, 1/2” C Mount
    1/2″C-Mount 4-12mm F1.6
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2″ C-mount
    ◆ Focal length：f=4-12mm
    ◆ F No.：F1.6-C
    ◆ Features：1/2-inch 4-12mm 2 Megapixel Manual Iris Lens  FA  Lens C Mount HD Lens

    ※ Model
    VM04012MPC

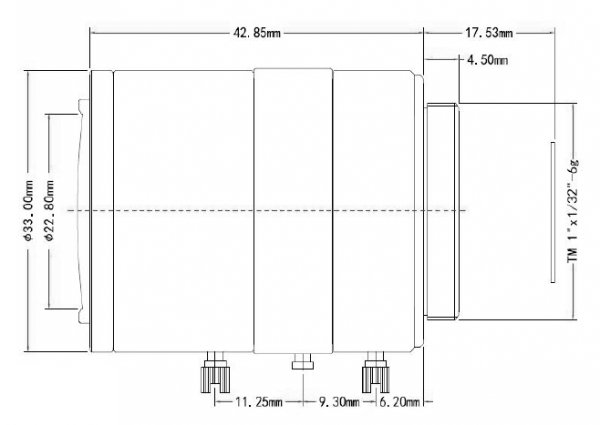

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM04012MPC

    Image Size

    1/2-inch

    Focal length

    4-12mm

    F No.

    F1.6-C

    M.O.D(m)

    0.2m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/3"Type

    -1%@wide

    1/2"Type

    -2%@wide

    Horizontal Angle of View

    1/2"Type

    87.3°×32°

    Mount

    C-Mount

    Dimension

    Ф33x42.85mm

    Weight

    87.0g

    Remark

    2MP FA LENS

    VM04012MPC specification
