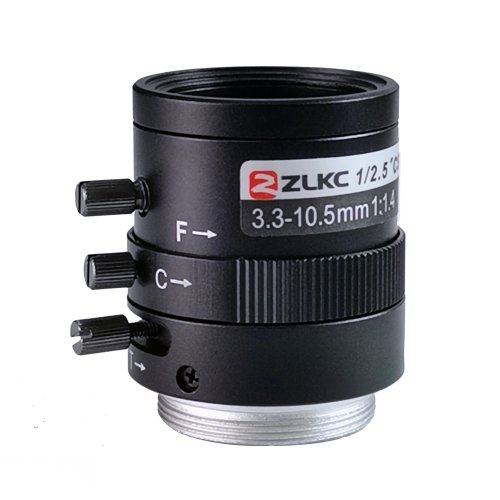

    ZLKC Lens VM33105MPIR 3.3-10.5mm 3Megapixel Manual Iris Lens, 1/2.5” Vari-focal HD Lens ​CCTV Lens CS Mount
    1/2.5″CS-Mount 3.3-10.5mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/2.5″ CS-mount
    ◆ Focal length：f=3.3-10.5mm
    ◆ F No.：F1.4-C
    ◆ Features：1/2.5" 3.3-10.5mm 3 Megapixel Manual Iris Lens Vari-focal  Lens CS Mount HD Lens

    ※ Model
    VM33105MPIR

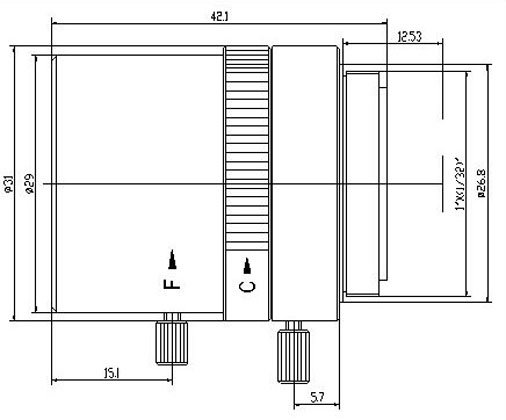

    ※ Dimension


    ※ Industries Application
    These are used in video surveillance industry and industrial automation. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on

    Model

    VM33105MPIR

    Image Size

    1/2.5-inch

    Focal length

    3.3-10.5mm

    F No.

    F1.4-C

    M.O.D(m)

    0.1m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/2.7"Type

    -3%@wide

    1/2.5"Type

    -2%@wide

    Horizontal Angle of View

    1/2.5"Type

    132°×38°

    Mount

    CS-Mount

    Dimension

    Ф29x42.1mm

    Weight

    78.0g

    Remark

    3MP HD LENS

    VM33105MPIR specification
