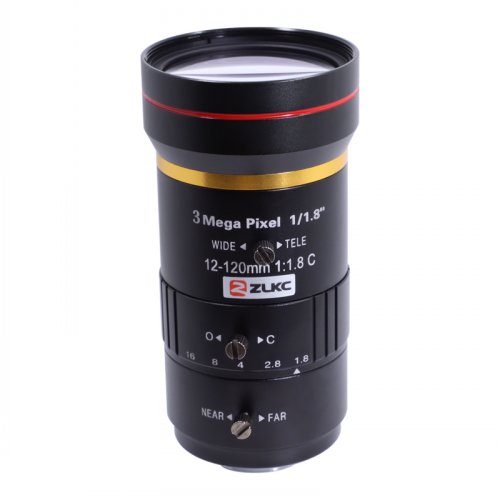

    ZLKC Lens VM12120MPC 12-120mm 3Megapixel Manual Iris Lens, 1/1.8” Vari-focal HD Lens ​FA Lens C Mount
    1/1.8″C-Mount F1.8 12-120mm
    Manual Iris Lens
    Optical glass material
    Locking set screws for focus and zoom
    Metal structure，compact appearance
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：1/1.8″ C-mount
    ◆ Focal length：f=12-120mm
    ◆ F No.：F1.8-16
    ◆ Features：1/1.8" 12-120mm 3 Megapixel Manual Iris Lens Vari-focal  Lens C Mount HD Lens

    ※ Model
    VM12120MPC

    ※ Dimension


    ※ Industries Application
    These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras and so on

    Model

    VM12120MPC

    Image Size

    1/1.8-inch

    Focal length

    12-120mm

    F No.

    F1.8-F16

    M.O.D(m)

    1.2m

    Operation

    Iris

    Manual

    Focus

    Manual

    Zoom

    Manual

    Distortion

    1/1.8"Type

    -0.12%@wide -0.05%@tele

    Horizontal Angle of View

    1/1.8"Type

    W32.4°x24.6° T3.7°x2.8°

    Mount

    C-Mount

    Back focal length

    10.78mm

    Dimension

    Φ48x 93.5mm

    Weight

    272.0g

    Remark

    3MP HD lens

    VM12120MPC specification
