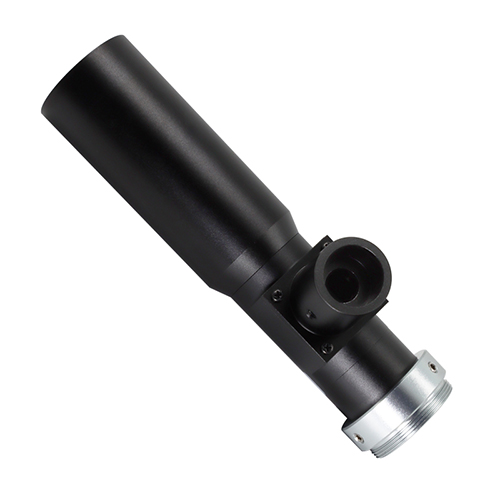

    ZLKC high-resolution coaxial Telecentric lens HM20X110CT 2x 110mm
    2/3″ C-Mount 2x coaxial
    Megapixels high-resolution telecentric lens
    supporting working distance 110mm
    Wide magnification ranges from 0.5X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Magnification：2X
    ◆ WD：110mm
    ◆ Features：Coaxial Telecentric Lens C-Mount 2x instant measurement lens

    ※ Model
    HM20X110CT

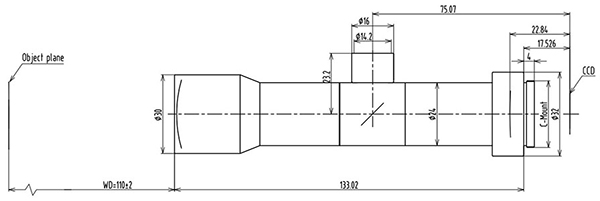

    ※ Dimension


    ※ Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.

    Model

    HM20X110CT

    Max Image Size

    2/3-inch

    Magnification

    2 X

    WD (mm)

    110

    Working F/#

    13.6

    Object NA(mm)

    0.074

    Depth of field(mm)

    0.42

    Distortion

    <0.05%

    Resolution

    4.5μ

    FOV（WxH）(mm)

    2/3"(8.8x6.6)

    4.3x3.3

    1/1.8"(7.13x5.37)

    3.6x2.7

    1/2"(6.4x4.8)

    3.2x2.4

    (° max)

    <0.1°

    Mount

    C-Mount

    TTL

    149.73mm

    HM20X110CT specification
