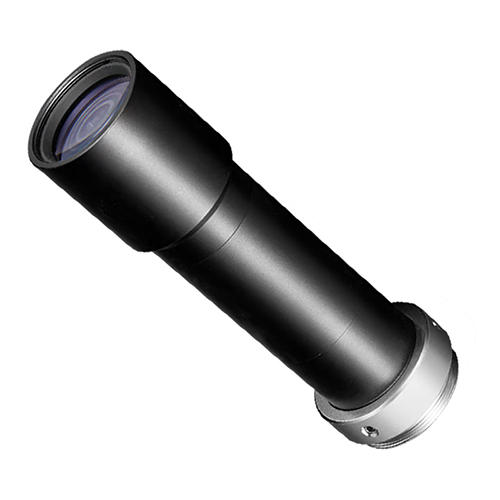

    ZLKC megapixel Telecentric lens FM15X65T 1.5x 65mm
    2/3″ C-Mount 1.5x
    Megapixels high-resolution telecentric lens
    supporting working distance 65mm
    Wide magnification ranges from 0.5X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Magnification：1.5X
    ◆ WD：65mm
    ◆ Features：High Mag Telecentric Lens C-Mount 1.5x instant measurement lens

    ※ Model
    FM15X65T

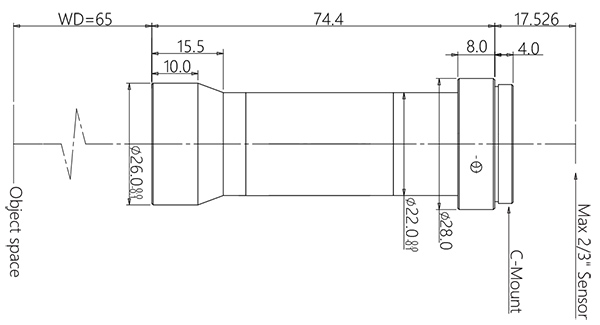

    ※ Dimension


    ※ Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.

    Model

    FM15X65T

    Max Image Size

    2/3-inch

    Magnification

    1.5X

    WD (mm)

    65

    F/# Working F/#

    12.5

    Object NA(mm)

    0.045

    Depth of field(mm)

    0.4

    Distortion

    <0.1%

    Resolution

    5.6μ

    FOV（WxH）(mm)

    2/3"(8.8x6.6)

    5.9x4.4

    1/1.8"(7.13x5.37)

    4.8x3.6

    1/2"(6.4x4.8)

    4.3x3.2

    ° max

    <0.1°

    Mount

    C-Mount

    TTL

    74.4mm

    FM15X65T specification
