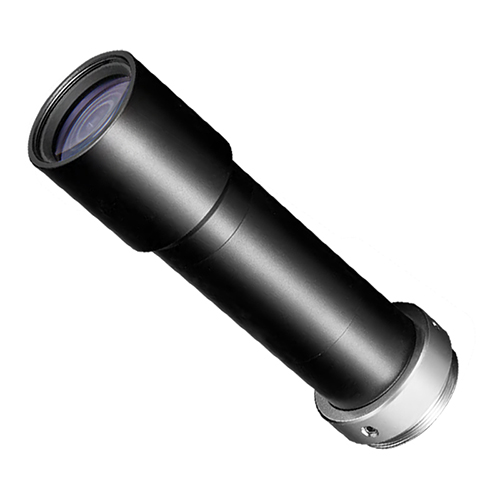

    ZLKC megapixel Telecentric lens FM018X150T 0.18x 150mm
    2/3″ C-Mount 0.18x
    Megapixels high-resolution telecentric lens
    supporting working distance 150mm
    Wide magnification ranges from 0.5X to 6X
    object telecentric design
    Low distortion,Excellent image uniformity
    large aperature for high brightness
    Metal structure，Compact design
    widely applied in instant measurement
    View phone Inquiry now
    Tel:+86 13570283679
    IntroductionSpecificationsDownloadOther Product
    ※ Product Features
    ◆ Brand：ZLKC
    ◆ Image Size：2/3″ C-mount
    ◆ Magnification：0.18X
    ◆ WD：150mm
    ◆ Features：High Mag Telecentric Lens C-Mount 0.18x instant measurement lens

    ※ Model
    FM018X150T

    ※ Dimension


    ※ Industries Application
    These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.

    Model

    FM018X150T

    Max Image Size

    2/3-inch

    Magnification

    0.18X

    WD (mm)

    150

    Working F/#

    12.6

    Object NA(mm)

    0.00713

    Depth of field(mm)

    31.1

    Distortion

    <0.6%

    Resolution

    47.1μ

    FOV（WxH）(mm)

    2/3"(8.8×6.6)

    48.9x36.7

    1/1.8"(7.13×5.37)

    39.6x29.8

    1/2"(6.4×4.8)

    35.6x26.7

    (° max)

    <0.1°

    Mount

    C-Mount

    TTL

    77.2mm

    FM018X150T specification
