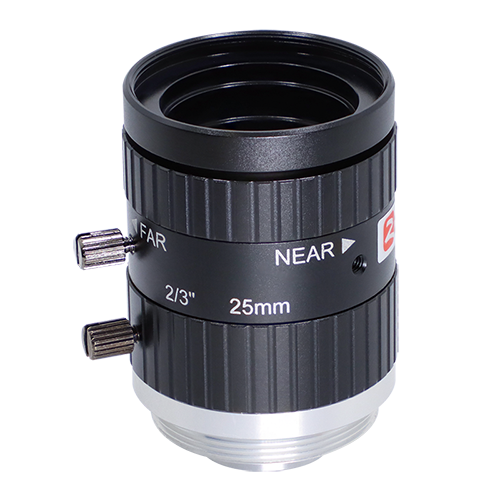

10MP high resolution lens 25mm

Working Distance

Magnification

2/3"Field of View(mm)

Model

VM2528MP10

mm

X

H

V

Image Size

2/3-inch

1000

0.025X

333.01

276.79

Focal length

25mm

900

0.028X

299.19

248.67

F No.

F2.8-16

850

0.029X

282.26

234.60

M.O.D(m)

0.15-Inf.

800

0.031X

265.35

220.55

Operation

Iris

Manual

750

0.033X

248.42

206.48

Focus

Manual

700

0.036X

231.49

192.41

Angle of View

(D×H×V)

2/3"

24.8°×19.9°×15.0°

650

0.038X

214.59

178.36

1/2"

18.2°×14.6°×11.0°

600

0.042X

197.68

164.31

1/3"

13.7°×10.9°×8.2°

550

0.045X

180.77

150.25

TV Distortion

-0.02%

500

0.050X

163.85

136.18

BFL

10.31mm

450

0.056X

146.94

122.13

Flange FL

17.526mm

400

0.063X

130.01

108.06

Mount

C-Mount

350

0.071X

113.08

93.99

2/3"FOV

45.3mm×37.7mm(WD=150mm)

300

0.083X

96.17

79.93

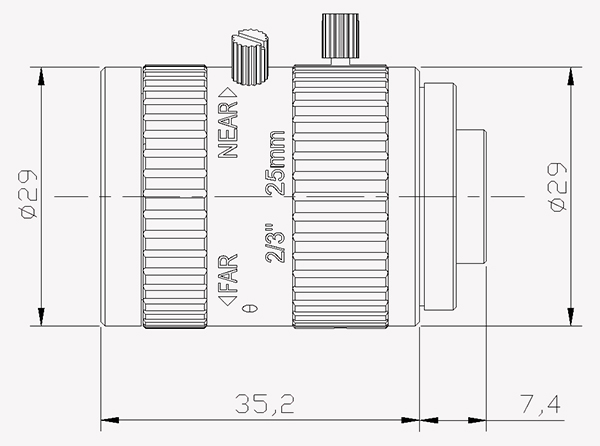

Dimension

Φ29×35.2mm

250

0.100X

79.25

65.87

Weight

54.8g

200

0.125X

62.31

51.79

Filter

M27 P=0.5mm

150

0.167X

45.38

37.72

Working Temperature

-20ºC ～ +60ºC

100

0.250X

29.26

24.32
