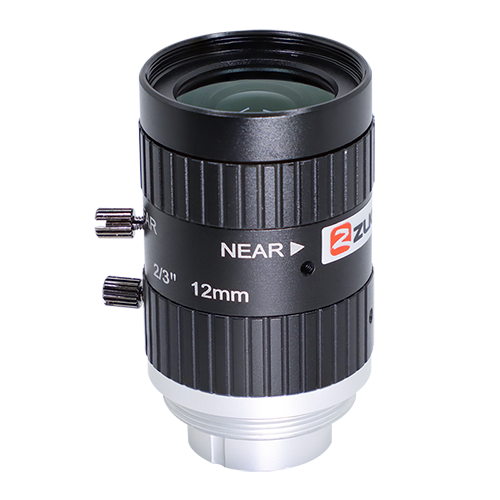

10MP high resolution lens 12mm

Working Distance

Magnification

2/3"Field of View(mm)

Model

VM1228MP10

mm

X

H

V

Image Size

2/3-inch

1000

0.012X

708.14

588.59

Focal length

12mm

900

0.013X

637.65

529.99

F No.

F2.8-16

850

0.014X

602.33

500.63

M.O.D(m)

0.15-Inf.

800

0.015X

566.98

471.25

Operation

Iris

Manual

750

0.016X

517.93

441.96

Focus

Manual

700

0.017X

496.55

412.72

Angle of View

(D×H×V)

2/3"

49.2°×40.3°×30.8°

650

0.018X

461.20

383.34

1/2"

36.9°×29.9°×22.7°

600

0.020X

425.81

353.92

1/3"

28.1°×22.7°×17.1°

550

0.022X

390.63

295.25

TV Distortion

-0.03%

500

0.024X

355.22

295.25

BFL

8.43mm

450

0.027X

320.03

266.00

Flange FL

17.526mm

400

0.030X

284.64

236.58

Mount

C-Mount

350

0.034X

249.22

207.14

2/3"FOV

108.2mm×89.9mm(WD=150mm)

300

0.040X

214.05

177.91

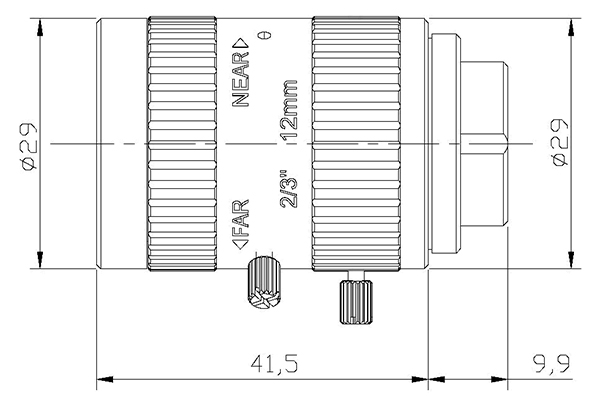

Dimension

Φ29×41.5mm

250

0.048X

178.67

148.50

Weight

70.3g

200

0.060X

143.47

119.25

Filter

M27 P=0.5mm

150

0.067X

108.18

89.91

Working Temperature

-20ºC ～ +60ºC

100

0.080X

76.42

63.51
